Fork Mounted Access Platform for 2-Persons - Lift-up Bar

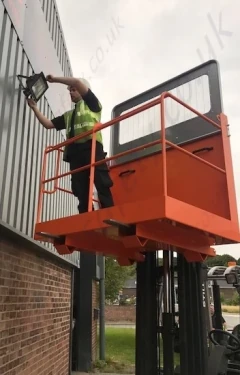

Wide 2 person telehandler fork mounted access platform with elevated (stilted) fork pockets.

Model:

FMAP-5437


Description

+

Our range of Access Platforms provide a safe environment for a wide range of maintenance and inspections to be carried out from, with the reassurance that they have been manufactured in accordance with HSE document PM28 4th Edition.

Standard Features

  • Hinge back guard for ease of transportation and storage
  • Safety harness attachment rings
  • Self-draining non-slip floor
  • Internal handles
  • Stilt pressings to elevate fork pockets
  • Zinc plated heel pins for safe attachment to truck
  • Painted bright orange for safety

Optional Features

  • Safety harness
Model Personal Access No. of persons Platform base size L x W x H (mm) Capacity (kg) Weight (kg) C of G (mm) LLC (mm)
FMAP-5437-T27996 Lift-up bar 2 1500 x 950 x 2120 250 141 220 N/A
FMAP-5437-T27997 Lift-up bar 2 1800 x 950 x 2120 250 155 220 N/A
Pricing

+

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Our range of Access Platforms provide a safe environment for a wide range of maintenance and inspections to be carried out from, with the reassurance that they have been manufactured in accordance with HSE document PM28 4th Edition.

Standard Features

  • Hinge back guard for ease of transportation and storage
  • Safety harness attachment rings
  • Self-draining non-slip floor
  • Internal handles
  • Stilt pressings to elevate fork pockets
  • Zinc plated heel pins for safe attachment to truck
  • Painted bright orange for safety

Optional Features

  • Safety harness
Model Personal Access No. of persons Platform base size L x W x H (mm) Capacity (kg) Weight (kg) C of G (mm) LLC (mm)
FMAP-5437-T27996 Lift-up bar 2 1500 x 950 x 2120 250 141 220 N/A
FMAP-5437-T27997 Lift-up bar 2 1800 x 950 x 2120 250 155 220 N/A

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
