LIFTINGSAFETY

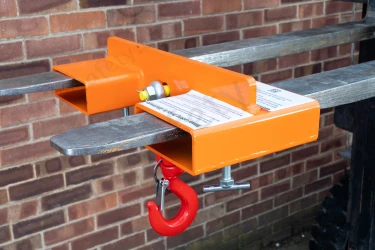

Adjustable Fork Mounted Hook - 1t to 5t options

Tine mounting lifting hook for use on forklift truck forks with capacity from 1000kg up to 5000kg

Model:

FMH-5441


Description

+

The Adjustable Fork Mounted Hook provides a quick and economical method of the lifting and positioning of unpalletised loads. Multiple lifting positions can be achieved by the correct positioning of the attachment along the fork blade.

Features

  • Completely adjustable along the fork blade (except taper)
  • Supplied complete with single swivel hook and bow shackle
  • Maximum fork section 150 x 50 mm at 355 mm centres
  • Zinc plated twist screws for safe attachment to truck
  • Painted bright orange for safety
Capacity (kg) Weight (kg) C of G (mm)
1000 16 125
1500 18 125
2000 20 125
2500 21 125
3000 24 125
4000 26 125
5000 29 125



Downloads

+
IAH-Spec-Unbranded (18).pdf

(approx. 0.5Mb)

The Adjustable Fork Mounted Hook provides a quick and economical method of the lifting and positioning of unpalletised loads. Multiple lifting positions can be achieved by the correct positioning of the attachment along the fork blade.

Features

  • Completely adjustable along the fork blade (except taper)
  • Supplied complete with single swivel hook and bow shackle
  • Maximum fork section 150 x 50 mm at 355 mm centres
  • Zinc plated twist screws for safe attachment to truck
  • Painted bright orange for safety
Capacity (kg) Weight (kg) C of G (mm)
1000 16 125
1500 18 125
2000 20 125
2500 21 125
3000 24 125
4000 26 125
5000 29 125



IAH-Spec-Unbranded (18).pdf

(approx. 0.5Mb)

Pricing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
