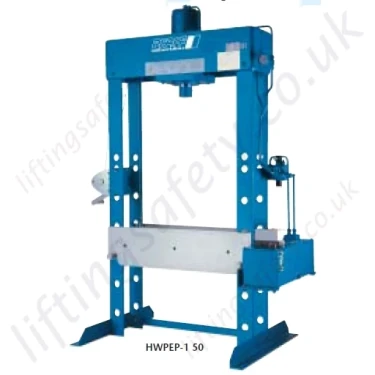

Pfaff HWPEP Workshop Press, Manual Hydraulic Operation - 30,000kg to 100,000kg
HWPEP / PWP-3229




Unfortunately the Pfaff HWPEP Workshop Press is no long available. Click to view our full range of Hydraulic Workshop Presses, or Contact us with you requirements.
Compressed productivity in press form for repair and assembly work. This is what the workshop press offers with its reliable 1- or 2-level electric pump and pressing power of up to 100 metric tons. Whether you are pressing bearings and bushes in and out, straightening axles, beams and shafts, or bending, pressing or setting up tools … the high performance of this press is based on optimized technology. For example, the press comes with a high pressure unit with a manometer, a control valve and three-way valve, an adjustable pick-up table and high-quality pistons made of chrome-plated hardened and tempered special steel.

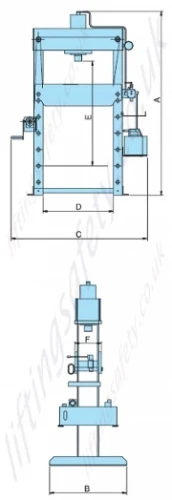

Press Specifications
Workshop press – with 1-level electric pump | ||||||
Type | Dims | HWPEP-1 30 | HWPEP-1 40 | HWPEP-1 50 | HWPEP-1 100 | |
Pressing power | t | 30 | 40 | 50 | 100 | |
Operating pressure | bar | 250 | 330 | 330 | 320 | |
Height | A | mm | 192 | 2010 | 2030 | 2170 |
Depth | B | mm | 660 | 780 | 850 | 1000 |
Width | C | mm | 1240 | 1315 | 1410 | 1700 |
Clear width | D | mm | 700 | 775 | 775 | 1000 |
Clear height | E | mm | 1000 | 1125 | 1155 | 1075 |
Depth of frame | F | mm | 245 | 258 | 300 | 415 |
Lift | mm | 260 | 260 | 260 | 300 | |
Lifting speed | mm / min | 306 | 306 | 246 | 174 | |
Motor data | 400v 1.5 kW | 400v 3 kW | ||||
Load factor | S3-30%* | |||||
Unladen weight | kg | 280 | 340 | 450 | 920 | |
Workshop press – with 2-level electric pump | ||||||
Type | Dims | HWPEP-2 30 | HWPEP-2 40 | HWPEP-2 50 | HWPEP-2 100 | |
Pressing power | t | 30 | 40 | 50 | 100 | |
Operating pressure | bar | 250 | 330 | 330 | 320 | |
Height | A | mm | 1920 | 2010 | 2030 | 2170 |
Depth | B | mm | 660 | 780 | 850 | 1000 |
Width | C | mm | 1240 | 1315 | 1460 | 1700 |
Clear width | D | mm | 700 | 775 | 775 | 1000 |
Clear height | E | mm | 1000 | 1125 | 1155 | 1075 |
Depth of frame | F | mm | 245 | 258 | 300 | 415 |
Lift | mm | 260 | 260 | 260 | 300 | |
Lifting speed Level 1 | mm / min | 1296 | 1296 | 1500 | 1464 | |
Lifting speed Level 2 | mm / min | 252 | 252 | 204 | 174 | |
Motor data | 400v 2.2 kW | 400v 3 kW | ||||
Load factor | S3-30%* | |||||
Unladen weight | kg | 280 | 340 | 450 | 920 |

*10 lifting cycles per hour; max. 6 sec. with pressure control valve for each lifting cycle Intended use: A workshop press/straightening press is a press with a slow closing speed of 10 mm/ and a maximum pressing capacity of 10 full load/full lift presses per hour.
Pricing
Unfortunately, this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
Contact Us About This ProductUnfortunately the Pfaff HWPEP Workshop Press is no long available. Click to view our full range of Hydraulic Workshop Presses, or Contact us with you requirements.
Compressed productivity in press form for repair and assembly work. This is what the workshop press offers with its reliable 1- or 2-level electric pump and pressing power of up to 100 metric tons. Whether you are pressing bearings and bushes in and out, straightening axles, beams and shafts, or bending, pressing or setting up tools … the high performance of this press is based on optimized technology. For example, the press comes with a high pressure unit with a manometer, a control valve and three-way valve, an adjustable pick-up table and high-quality pistons made of chrome-plated hardened and tempered special steel.

Press Specifications
Workshop press – with 1-level electric pump | ||||||
Type | Dims | HWPEP-1 30 | HWPEP-1 40 | HWPEP-1 50 | HWPEP-1 100 | |
Pressing power | t | 30 | 40 | 50 | 100 | |
Operating pressure | bar | 250 | 330 | 330 | 320 | |
Height | A | mm | 192 | 2010 | 2030 | 2170 |
Depth | B | mm | 660 | 780 | 850 | 1000 |
Width | C | mm | 1240 | 1315 | 1410 | 1700 |
Clear width | D | mm | 700 | 775 | 775 | 1000 |
Clear height | E | mm | 1000 | 1125 | 1155 | 1075 |
Depth of frame | F | mm | 245 | 258 | 300 | 415 |
Lift | mm | 260 | 260 | 260 | 300 | |
Lifting speed | mm / min | 306 | 306 | 246 | 174 | |
Motor data | 400v 1.5 kW | 400v 3 kW | ||||
Load factor | S3-30%* | |||||
Unladen weight | kg | 280 | 340 | 450 | 920 | |
Workshop press – with 2-level electric pump | ||||||
Type | Dims | HWPEP-2 30 | HWPEP-2 40 | HWPEP-2 50 | HWPEP-2 100 | |
Pressing power | t | 30 | 40 | 50 | 100 | |
Operating pressure | bar | 250 | 330 | 330 | 320 | |
Height | A | mm | 1920 | 2010 | 2030 | 2170 |
Depth | B | mm | 660 | 780 | 850 | 1000 |
Width | C | mm | 1240 | 1315 | 1460 | 1700 |
Clear width | D | mm | 700 | 775 | 775 | 1000 |
Clear height | E | mm | 1000 | 1125 | 1155 | 1075 |
Depth of frame | F | mm | 245 | 258 | 300 | 415 |
Lift | mm | 260 | 260 | 260 | 300 | |
Lifting speed Level 1 | mm / min | 1296 | 1296 | 1500 | 1464 | |
Lifting speed Level 2 | mm / min | 252 | 252 | 204 | 174 | |
Motor data | 400v 2.2 kW | 400v 3 kW | ||||
Load factor | S3-30%* | |||||
Unladen weight | kg | 280 | 340 | 450 | 920 |

*10 lifting cycles per hour; max. 6 sec. with pressure control valve for each lifting cycle Intended use: A workshop press/straightening press is a press with a slow closing speed of 10 mm/ and a maximum pressing capacity of 10 full load/full lift presses per hour.
