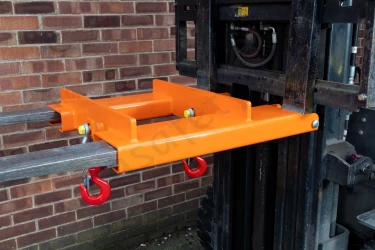

Fixed Position (two positions) Fork Mounted Hook - 1t to 5t options

Forklift truck tine mounting lifting hook attachment with heel pins for fixed positioning with capacity options from 1000kg to 5000kg.

Model:

FMH-5442


Description

+

Fork mounted hooks provide an economical and safe method of converting a forklift trick into a mini mobile crane. Multiple lifting positions can be achieved along the fork blade.

Features

  • Two fixed lifting points along fork blade
  • Supplied complete with single swivel hook and bow shackle
  • Maximum fork section 150 x 50 mm at 481 mm centres
  • Zinc plated heel pins for safe attachment to truck
  • Painted bright orange for safety.

Specifications

Capacity (kg) at 200mm centres Capacity (kg) at 600mm Weight (kg) C of G (mm) LLC (mm)
1000 1000 37 350 N/A
2000 2000 39 350 N/A
3000 3000 42 350 N/A
4000 4000 44 350 N/A
5000 5000 46 350 N/A
Pricing

+

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Fork mounted hooks provide an economical and safe method of converting a forklift trick into a mini mobile crane. Multiple lifting positions can be achieved along the fork blade.

Features

  • Two fixed lifting points along fork blade
  • Supplied complete with single swivel hook and bow shackle
  • Maximum fork section 150 x 50 mm at 481 mm centres
  • Zinc plated heel pins for safe attachment to truck
  • Painted bright orange for safety.

Specifications

Capacity (kg) at 200mm centres Capacity (kg) at 600mm Weight (kg) C of G (mm) LLC (mm)
1000 1000 37 350 N/A
2000 2000 39 350 N/A
3000 3000 42 350 N/A
4000 4000 44 350 N/A
5000 5000 46 350 N/A

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
