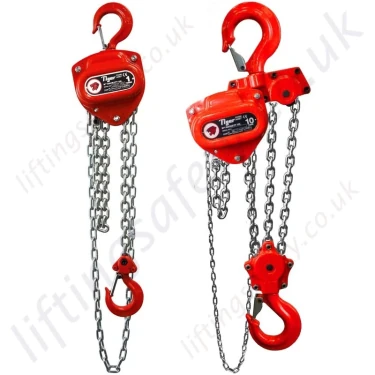

Manual Chain Block. Hook suspended as standard, but with optional push or geared travel trolleys to suit.

Model:

Tiger / TMCH-2818

Tiger Manual Hand Chain Hoist, Top Hook Suspended - Range from 500kg to 20,000kg

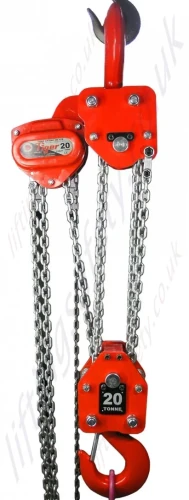

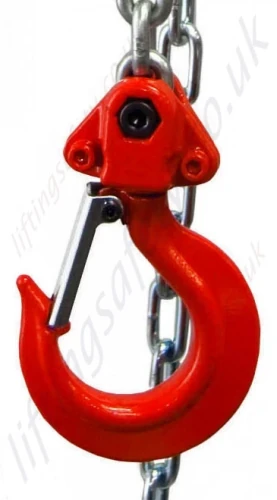

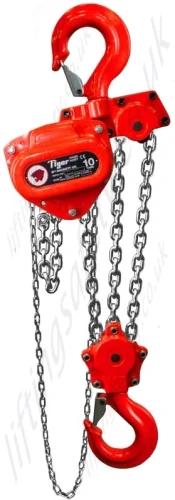

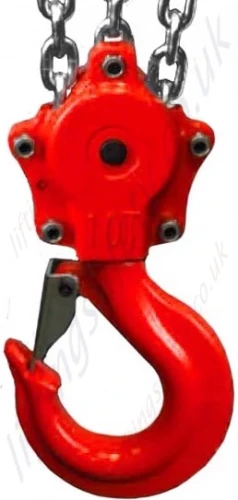

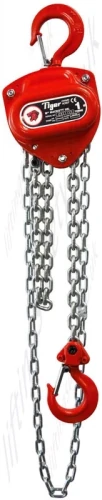

1 Tonne Tiger Chain Block - Top Hook and Body 10 Tonne Tiger Chain Block - Top Hook and Body 1 Tonne Tiger Chain Hoist 10 Tonne Tiger Chain Hoist 20t Tiger Hand Chain Hoist Block 1 Tonne Tiger Hoist - Bottom Hook 10 Tonne Tiger Hoist - Bottom Hook Heavy duty steel latch Unique hand chain joiner Load chain anchor bolt Nuts and bolts Single Bar Tiger Plain Push Trolley Twin Bar Tiger Plain Push Trolley Single Bar Tiger Geared Trolley Twin Bar Tiger Geared Trolley

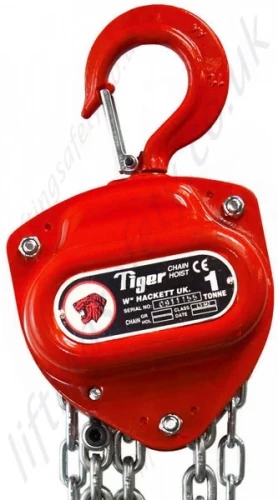

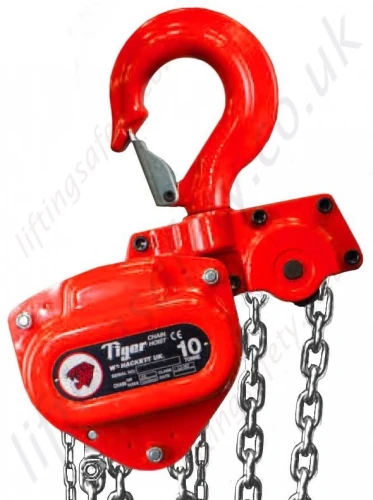

1 Tonne Tiger Chain Block - Top Hook and Body

The Tiger TCB11 Chain Hoist has been superseded by the Tiger ProCB14 Hand Chain Block.

The Tiger Chain Blocks are manufactured from high quality steel offering a lightweight but robust and an exceptionally strong hand chain hoist at a competitive price.

The design of this lifting hoist has been developed over a number of years putting emphasis on operator safety and hoist durability. Such features allow the manual chain hoists to meet the requirements for use by the Ministry of Defence mining and also approved / certified to be used in Deep coal mining, meeting the requirements of British Coal and commonly being used by the the UK Coal mining industry. The Hackett hand chain hoist is also extensively used in the Offshore Oil industry. All these industries operate in extreme environments where reliability and safety are paramount and for this reason we At Liftingsafety are now selling the Hackett range of hand chain hoists.

The Hackett hand lifting hoist hoist range meets and supersedes the latest British and European Standard EN13157 looking to achieve a light load test no greater than 2% of the rated capacity of the hoist.

  • Compact design combined with strength and durability make the Tiger Chain Block extremely robust whilst easy to handle in confined spaces.
  • Specialised grease allows the units to work within temperatures ranging from -40ºc to +200ºc. This exceeds the European standard requirements for low temperature use.
  • Guarantees against any light load failures down to 2% of the rated capacity.
  • Tiger Chain Blocks can be fitted with any Yoke Grade 80 or Grade 100 component to suit specific application and lift orientation using our patent pending designed adaptor

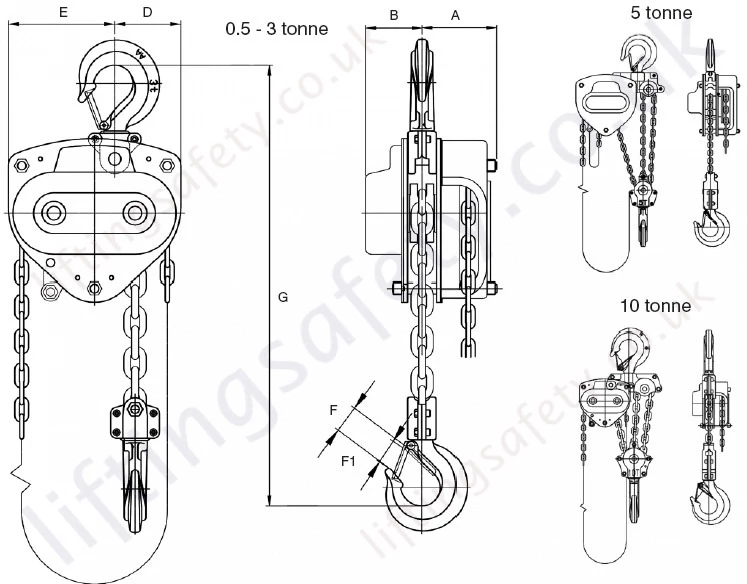

Dimensional DrawingDimensional Drawing

Specifications

Part N° SWL Dimensions (mm) Load Chain Mass (kg) (3 mtr)
A B D E F F1 G Size (mm) No. of Falls
012.050 500kg 89 67 50 80 30 26 305 6.3 1 10.8
012.100 1.0t 89 67 53 87 33 28 340 6.3 1 12
012.150 1.5t 93 73 75 105 38 34 385 7.1 1 16.3
012.200 2.0t 98 77 85 115 43 38 420 8 1 20.6
012.300 3.0t (S/Fall) 108 83.5 97.5 157.5 43 38 550 10 1 34
012.500 5.0t 98 77 120 210 57 52 575 8 3 39
012.1000 10.0t 108 83.5 165 247.5 60 54 660 10 3 62.3

Additional Features

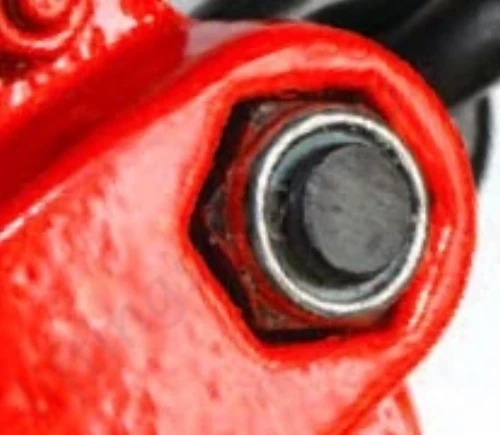

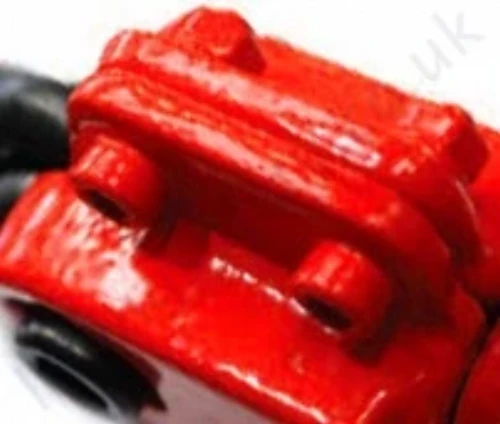

Heavy duty steel latch Unique hand chain joiner Load chain anchor bolts Nuts and bolts

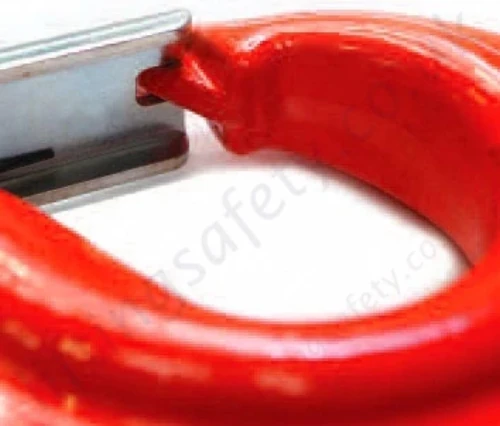

Heavy duty steel latch engages fully with the hook tip creating a strong secure closure Unique hand chain joiner allows for the safe and secure joining of hand chain, removing the need for welded or unwelded links Load chain anchor bolts are fitted via a coined out area offering protection to the nut and bolt, whilst making removal easier for the service engineer Nuts and bolts are used to secure hook yokes allowing disassembly of the yoke to allow full inspection of load hooks
LiftingSafety Review:
The Tiger hand chain block is now the only HCB made by Hackett, it is a quality hoist that we have been selling (and servicing) for about 15 years. It is both robust and good value for money with spare parts readily available. We have sold many different hand chain hoists over the years and are very happy to vouch for this excellent product. The Tiger Hoists are not cheap and not expensive; they are not the very best money can buy though is is far FAR better than average at the 'Right price'

Exploded Diagram

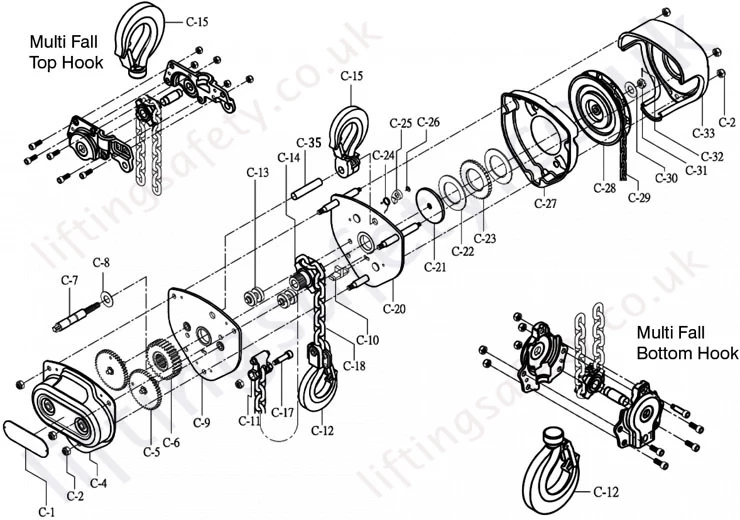

Exploded Parts Diagram

Spare Parts List

Part Code Part Name Part Code Part Name
C-0 Safety Catch C-20 Wheel-Side Plate Assembly
C-1 Label C-21 Disc Hub
C-2 Nut C-22 Friction Diac
C-4 Gear Cover C-23 Ratchet Gear
C-5 Pinion Gear C-24 Pawl Spring
C-6 Load Gear C-25 Pawl
C-7 Pinion Shaft C-26 Snap Ring for Pawl Pin
C-8 Pinion Shaft Washer C-27 Ratchet Gear Cover
C-9 Gear-Side Plate C-28 Handwheel
C-10 Stripper C-30 Washer for Pinion Shaft Nut
C-11 Load Chain Anchoring C-31 Check Nut
C-12 Bottom Hook Assembly C-32 Split Pin
C-13 Load Chain Guide C-33 Handwheel Cover
C-14 Load Sheave C-34 Nut / Bolt for Bottom Hook
C-15 Top Hook Assembly C-35 Nut / Bolt for Top Hook
C-17 Chain-End Fixing Pin

To Purchase Spare Parts for this product, Please Ring our sales team on 01977684600, or click here for our web enquiry form, quoting the necessary part numbers from the above table.

LiftingSafety Review:
The Tiger hand chain block is now the only HCB made by Hackett, it is a quality hoist that we have been selling (and servicing) for about 15 years. It is both robust and good value for money with spare parts readily available. We have sold many different hand chain hoists over the years and are very happy to vouch for this excellent product. The Tiger Hoists are not cheap and not expensive; they are not the very best money can buy though is is far FAR better than average at the 'Right price'

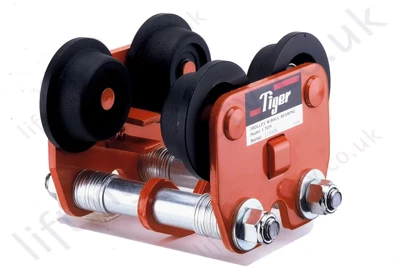

Tiger Push Travel Trolley

push travel trolley  Range 1
   Range 2
Part Code SWL (tonne) Flange (mm) Part Code SWL (tonne) Flange (mm)
044.050-1 0.5 62-128 - - -
044.100-1 1.0 62-128  044.100-2 1.0
 130-203
044.200-1 2.0 88-154  044.200-2 2.0  155-230
044.300-1 3.0 87-153  044.300-2 3.0
 155-230
044.500-1 5.0 106-194  044.500-2 5.0  200-305
044.1000-1 10.0 136-305 - - -

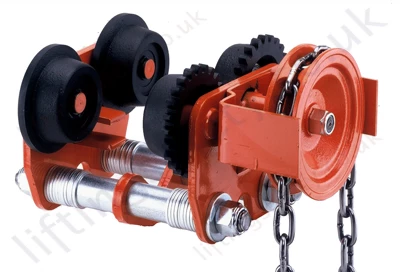

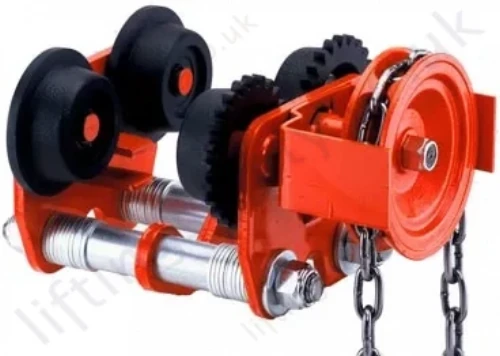

Tiger Geared Travel Trolley
