William Hackett Dual Speed Hand Chain Hoist, Top Hook Suspended - Range from 3.2 tonne to 50 tonne

William Hackett Dual Speed Hand Chain Hoist, Top Hook Suspended - Range from 3.2 tonne to 50 tonne

Two speed manual chain hoist can lift and lower the load chain 5 times faster than a regular chain hoist when it does not have a load.

Model:

WHDS-5080

William Hackett Dual Speed Hand Chain Hoist, Top Hook Suspended - Range from 3.2 tonne to 50 tonne

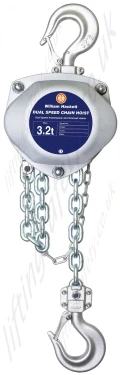

Quick Speed Hand Chain Hoist

Unfortunately the WH dual speed chain hoist is no longer available. Please see our manual chain block range for a possible alternative.

The William Hackett dual speed chain hoist is manufactured in accordance with EN13157 which requires that it can be used within an operating temperature range of -40°C to +55°C.

The design and specification of the William Hackett dual speed chain hoist includes:

  • WORKING LOAD LIMIT RANGE:
    Range 3.2 tonnes to 50 tonnes.
  • LIGHT LOAD CAPABILITY:
    The dual speed chain hoist is tested and certified at 2% of the chain hoist rated capacity.
  • TWIN PAWL:
    Double safety; fitted as standard.
  • SAFETY LATCHES:
    The dual speed chain hoist top and bottom hooks are fitted with heavy duty cast steel latches. The latch and hook tip are integrated creating a strong and robust hook closure.
  • OVERLOAD INDICATOR MARKS:
    The dual speed chain block top and bottom hooks have, as part of the hook forging, overload indicator marks either side of the hook throat. By measuring the distance between the indicator marks, the hook can be quickly and easily checked to see if any stretch has occurred due to misuse or overloading.
  • HAND CHAIN JOINER:
    A unique hand chain joiner is used as a quick and secure method of joining the hand chain without the need to cut, bend, open and close a link of existing hand chain.
  • FLEETING/CROSS HAULING:
    The WH-C4 chain hoist is tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration. Ref. test document.
  • LOAD CHAIN:
    WH-C4 chain blocks are fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8).
  • OVERLOAD LIMITER:
    Available as an option upon request.
  • The dual speed chain hoist can lift and lower the load chain 5 times faster than a regular chain hoist when it does not have a load.
  • When the hoist is loaded, the lifting and lowering speed will be the same as a regular chain hoist.
  • Equipped with Load Sensing Automatic Speed Transmission which is the first in this field.
  • Smooth speed transmissions between high and standard speed without neutral position, which is reliable and safe.
  • Equipped with an overload limiter ensuring safe operation.

The dual speed chain hoist meets and exceeds the requirements of the following international standards:

  • British Standard BS EN13157:2004 + AI:2009
  • American Standard ASME B30.16-2012
  • Australian Standard AS1418.2-1997
  • South African Standard SANS 1594:2007
  • NORSOK R-002: 2017.

Specifications

WLL (t)  No. of Falls  Load Chain
(mm) 		 Lift (m)  Mass (kg)  Extra Weight
per m (kg) 		 Change from
High Speed to Standard Speed (kg) 		 Change from
Standard Speed to High Speed (kg) 		 Pulling Hand Chain to Lift 1m
High Speed (m) Standard Speed (m)
3.2 1 10 x 30  3 28 3 >55 <25 27 136
5 2 10 x 30 3 42 5.2 >110 <50 54 272
7.5 3 10 x 30 3 63 7.4 >165 <75 81 408
10 4 10 x 30 3 72 9.6 >165 <75 108 544
15 6 10 x 30 3 121 14 >275 <125 162 816
20 8 10 x 30 3 158 19.2 >330 <150 108 x 2 544 x 2
30 12 10 x 30 3 223 28 >330 <150 162 x 2 816 x 2
50 20 10 x 30 3 465 44 >330 <150 270 x 2 1360 x 2

Dimensions

Single Fall Dimensions
Single Fall Hoist
Multi Fall Dimensions
Multi Fall Hoist
WLL (t) a mm) b (mm) c (mm) d (mm) e (mm) f (mm) g (mm) h (mm)
3.2 247 227 68.5 38.5 43 49.5 62 465
5 247 275 133 64 51 60 79 600
7.5 247 366 120 70 64 85 - 740
10 247 358 263 95 64 85 - 760
15 275 485 110 168 80 100 - 1000
20 285 648 286 123 82 110 - 1150
30 285 780 306 180 82 110 - 1500
50 585 832 480 310 133 170 - 1700

Pricing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Description

+

Unfortunately the WH dual speed chain hoist is no longer available. Please see our manual chain block range for a possible alternative.

The William Hackett dual speed chain hoist is manufactured in accordance with EN13157 which requires that it can be used within an operating temperature range of -40°C to +55°C.

The design and specification of the William Hackett dual speed chain hoist includes:

  • WORKING LOAD LIMIT RANGE:
    Range 3.2 tonnes to 50 tonnes.
  • LIGHT LOAD CAPABILITY:
    The dual speed chain hoist is tested and certified at 2% of the chain hoist rated capacity.
  • TWIN PAWL:
    Double safety; fitted as standard.
  • SAFETY LATCHES:
    The dual speed chain hoist top and bottom hooks are fitted with heavy duty cast steel latches. The latch and hook tip are integrated creating a strong and robust hook closure.
  • OVERLOAD INDICATOR MARKS:
    The dual speed chain block top and bottom hooks have, as part of the hook forging, overload indicator marks either side of the hook throat. By measuring the distance between the indicator marks, the hook can be quickly and easily checked to see if any stretch has occurred due to misuse or overloading.
  • HAND CHAIN JOINER:
    A unique hand chain joiner is used as a quick and secure method of joining the hand chain without the need to cut, bend, open and close a link of existing hand chain.
  • FLEETING/CROSS HAULING:
    The WH-C4 chain hoist is tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration. Ref. test document.
  • LOAD CHAIN:
    WH-C4 chain blocks are fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8).
  • OVERLOAD LIMITER:
    Available as an option upon request.
  • The dual speed chain hoist can lift and lower the load chain 5 times faster than a regular chain hoist when it does not have a load.
  • When the hoist is loaded, the lifting and lowering speed will be the same as a regular chain hoist.
  • Equipped with Load Sensing Automatic Speed Transmission which is the first in this field.
  • Smooth speed transmissions between high and standard speed without neutral position, which is reliable and safe.
  • Equipped with an overload limiter ensuring safe operation.

The dual speed chain hoist meets and exceeds the requirements of the following international standards:

  • British Standard BS EN13157:2004 + AI:2009
  • American Standard ASME B30.16-2012
  • Australian Standard AS1418.2-1997
  • South African Standard SANS 1594:2007
  • NORSOK R-002: 2017.

Specifications

WLL (t)  No. of Falls  Load Chain
(mm) 		 Lift (m)  Mass (kg)  Extra Weight
per m (kg) 		 Change from
High Speed to Standard Speed (kg) 		 Change from
Standard Speed to High Speed (kg) 		 Pulling Hand Chain to Lift 1m
High Speed (m) Standard Speed (m)
3.2 1 10 x 30  3 28 3 >55 <25 27 136
5 2 10 x 30 3 42 5.2 >110 <50 54 272
7.5 3 10 x 30 3 63 7.4 >165 <75 81 408
10 4 10 x 30 3 72 9.6 >165 <75 108 544
15 6 10 x 30 3 121 14 >275 <125 162 816
20 8 10 x 30 3 158 19.2 >330 <150 108 x 2 544 x 2
30 12 10 x 30 3 223 28 >330 <150 162 x 2 816 x 2
50 20 10 x 30 3 465 44 >330 <150 270 x 2 1360 x 2

Dimensions

Single Fall Dimensions
Single Fall Hoist
Multi Fall Dimensions
Multi Fall Hoist
WLL (t) a mm) b (mm) c (mm) d (mm) e (mm) f (mm) g (mm) h (mm)
3.2 247 227 68.5 38.5 43 49.5 62 465
5 247 275 133 64 51 60 79 600
7.5 247 366 120 70 64 85 - 740
10 247 358 263 95 64 85 - 760
15 275 485 110 168 80 100 - 1000
20 285 648 286 123 82 110 - 1150
30 285 780 306 180 82 110 - 1500
50 585 832 480 310 133 170 - 1700
