Gebuwin "HW" Spur Gear Winch, Range: 200kg to 800kg

Gebuwin "HW" Spur Gear Winch, Range: 200kg to 800kg

Economy range manual spur gear lifting/hoisting hand winch available with painted or stainless steel finish.

Model:

HW-GR/SS / GSGW-4759

Gebuwin "HW" Spur Gear Winch, Range: 200kg to 800kg

Gebuwin Spur Gear Winch Hw800 Spur Gear Winch Hw200 Spur Gear Winch Stainless Steel Spur Gear Winch

These Gebuwin hand driven winches have a straight forward construction, which allows for a favourable price / performance ratio. The winches have a static safety factor of minimum 1.5.

Product Features

  • Safe hoisting winch.
  • Load pressure brake with ratchet system.
  • In compliance with DIN 15020.
  • Maintenance-free bearing.
  • Ergonomic grip.
  • Painted or stainless steel version.

Technical Specifications

Model HW200-GR / HW200-SS HW800 (HW800-SS)
Capacity: 1st Cable Layer 200kg 800kg
Capacity: Last Cable Layer 86kg 491kg
Crank force 1st Cable Position 8 daN 13 daN
Hoisting Length by one rotation of crank (1st Layer) 40mm 26mm
Cable Capacity 31m 15m
Cable Dia. (EN 12383-4) 4mm 8mm
Min. Breaking Load Cable 9kN 34kN
Mounting Ground, 3 x M8 class 8.8 Ground, 4 x M8 class 8.8
Weight 4kg 10kg

May be subject to change

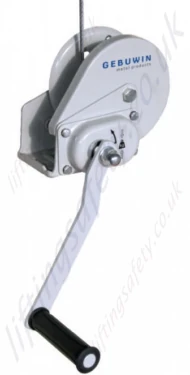

Gebuwin Spur Gear Winch
HW200/HW800 Painted Finish Winch

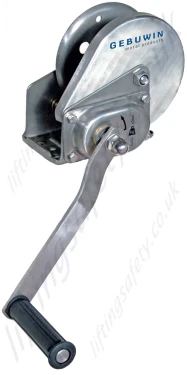

Stainless Steel Spur Gear Winch
HW800 Stainless Winch

Dimensional Information

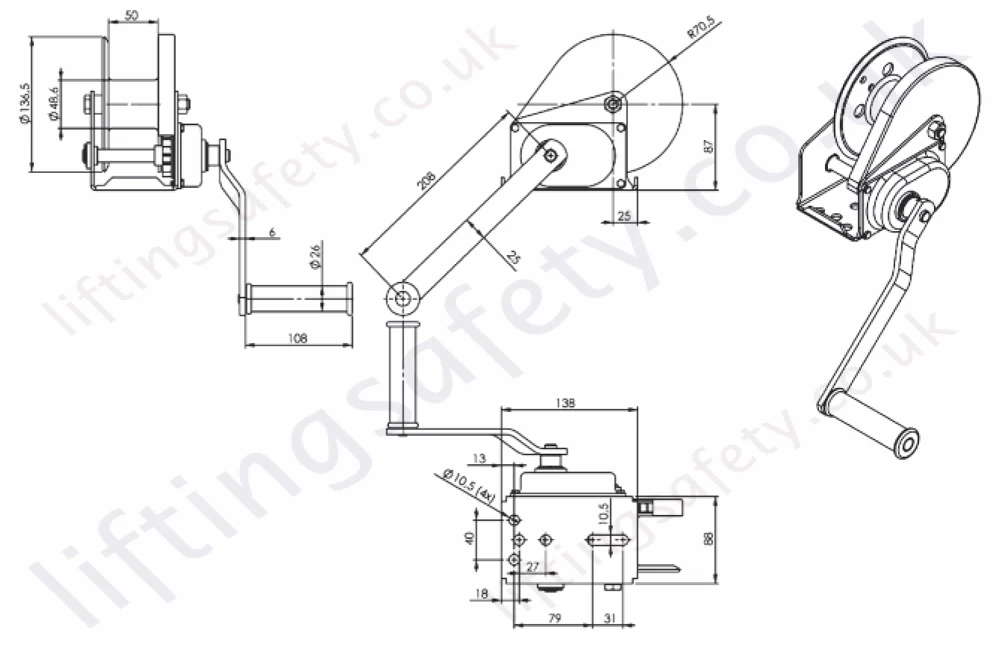

HW200 Spur Gear Winch

HW200 Spur gear Winch

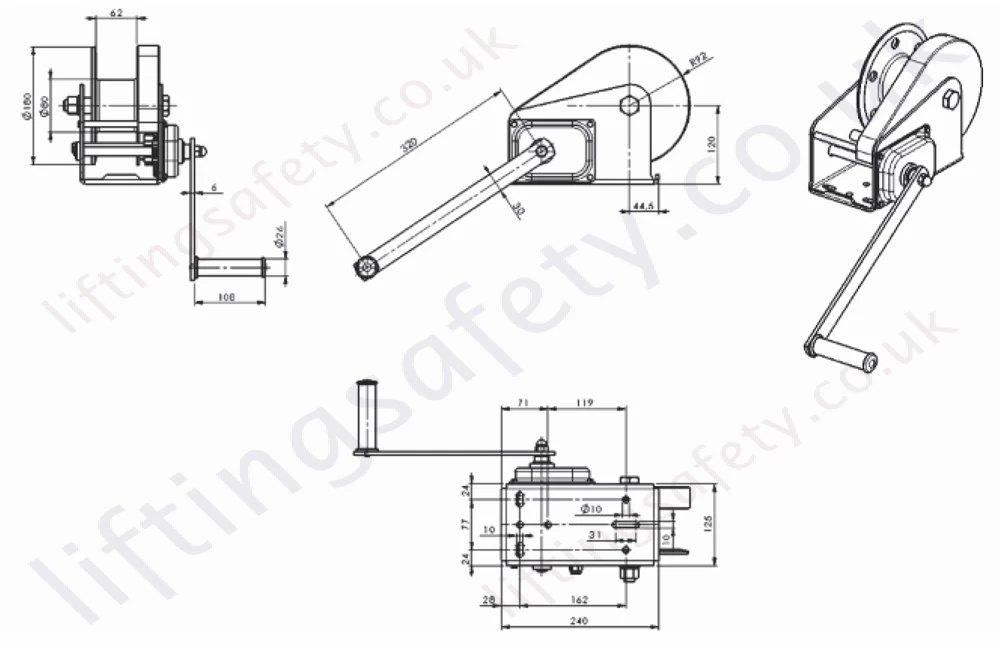

HW800-SS Spur Gear Winch

HW800 Spur gear Winch
</div
