Crosby 'L150' Lever Type Load Binders, Load Restraint Tensioner, WLL Range from 2450kg to 5900kg

Crosby 'L150' Lever Type Load Binders, Load Restraint Tensioner, WLL Range from 2450kg to 5900kg

Crosby Standard Lever Type Load Binders.

Model:

Crosby L-150 / LTLB-2449

Crosby 'L150' Lever Type Load Binders, Load Restraint Tensioner, WLL Range from 2450kg to 5900kg

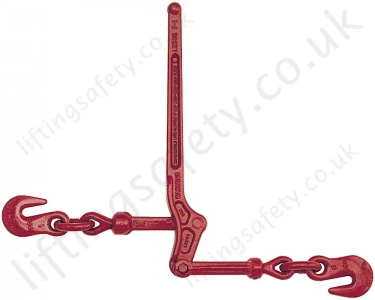

Lebus L150 Standard Lever Type Loadbinders

This page has expired. Unfortunately this product range "Crosby 'L150' Lever Type Load Binder" is no longer available. Please view our full range of Ratchet Load Binders or Contact us with your requirements for a possible suitable alternative.

  • Extra heavy construction at leverage point to prevent spreading. Heel of binder toggles away from load, permitting easy release.
  • Ball and socket swivel joints at hook assemblies permit a straight line pull.
  • Binders shown with Proof Loads have been individually proof tested to values shown, prior to shipment.
  • Meets or exceeds requirements of US DOT FMCSA Part 393 Subpart I.

Metric Dimensions & Specifications

      Model   L1 5 0 L1 5 0 Stock No. Min-Max Chain Size (mm) Working Load Limit (t)   Proof Load (kN)*   Ultimate Load (t)   Weight Each (kg)   Handle Length (mm)   Take Up (mm) Dimensions (mm)
A B C D E F G
7-1 1048128 8 - 10 2.45 48 8.63 3.18 406 114 613 562 454 406 264 264 12.7
A-1 1048146 10 - 13 4.17 82 15.0 5.66 475 114 730 654 540 475 313 314 16.0
C-1 1048164 13 - 16 5.90 116 20.9 8.93 533 121 794 756 635 533 372 349 18.3
Dimensional Drawing

Imperial Dimensions & Specifications

Model Stock
No.		 Min-Max Chain
Size
(in.)		 Working Load
Limit
(lbs.)		 Proof
Load
(lbs.)		 Ultimate Load (lbs.) Weight Each
(lbs.)		 Handle Length
(in.)		 Take
Up
(in.)		 Dimensions
(in.)
A B C D E F G
7-1 1048128 5/16-3/8 5400 10800 19000 7.02 16.00 4.50 24.13 22.13 17.88 16.00 10.38 10.38 .50
A-1 1048146 3/8-1/2 9200 18400 33000 12.47 18.69 4.50 28.75 25.75 21.25 18.69 12.31 12.38 .63
C-1 1048164 1/2-5/8 13000 26000 46000 19.68 21.00 4.75 31.25 29.75 25.00 21.00 14.63 13.75 .72

*Binders shown with Proof Loads have been individually proof tested to these values shown, prior to shipment.



Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Description

+

This page has expired. Unfortunately this product range "Crosby 'L150' Lever Type Load Binder" is no longer available. Please view our full range of Ratchet Load Binders or Contact us with your requirements for a possible suitable alternative.

  • Extra heavy construction at leverage point to prevent spreading. Heel of binder toggles away from load, permitting easy release.
  • Ball and socket swivel joints at hook assemblies permit a straight line pull.
  • Binders shown with Proof Loads have been individually proof tested to values shown, prior to shipment.
  • Meets or exceeds requirements of US DOT FMCSA Part 393 Subpart I.

Metric Dimensions & Specifications

      Model   L1 5 0 L1 5 0 Stock No. Min-Max Chain Size (mm) Working Load Limit (t)   Proof Load (kN)*   Ultimate Load (t)   Weight Each (kg)   Handle Length (mm)   Take Up (mm) Dimensions (mm)
A B C D E F G
7-1 1048128 8 - 10 2.45 48 8.63 3.18 406 114 613 562 454 406 264 264 12.7
A-1 1048146 10 - 13 4.17 82 15.0 5.66 475 114 730 654 540 475 313 314 16.0
C-1 1048164 13 - 16 5.90 116 20.9 8.93 533 121 794 756 635 533 372 349 18.3
Dimensional Drawing

Imperial Dimensions & Specifications

Model Stock
No.		 Min-Max Chain
Size
(in.)		 Working Load
Limit
(lbs.)		 Proof
Load
(lbs.)		 Ultimate Load (lbs.) Weight Each
(lbs.)		 Handle Length
(in.)		 Take
Up
(in.)		 Dimensions
(in.)
A B C D E F G
7-1 1048128 5/16-3/8 5400 10800 19000 7.02 16.00 4.50 24.13 22.13 17.88 16.00 10.38 10.38 .50
A-1 1048146 3/8-1/2 9200 18400 33000 12.47 18.69 4.50 28.75 25.75 21.25 18.69 12.31 12.38 .63
C-1 1048164 1/2-5/8 13000 26000 46000 19.68 21.00 4.75 31.25 29.75 25.00 21.00 14.63 13.75 .72

*Binders shown with Proof Loads have been individually proof tested to these values shown, prior to shipment.
