Crosby 'L140' Ratchet Load Binders, Load Restraint Tensioner, WLL Range from 4000kg to 7260kg

Crosby 'L140' Ratchet Load Binders, Load Restraint Tensioner, WLL Range from 4000kg to 7260kg

Crosby Standard Ratchet Type Load Binders.

Model:

Crosby L-140 / RLB-2450

Crosby 'L140' Ratchet Load Binders, Load Restraint Tensioner, WLL Range from 4000kg to 7260kg

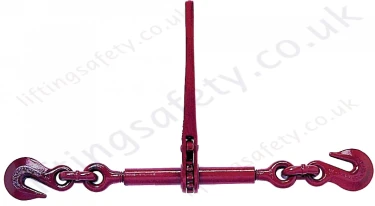

Lebus L140 Standard Ratchet Type Load Binders

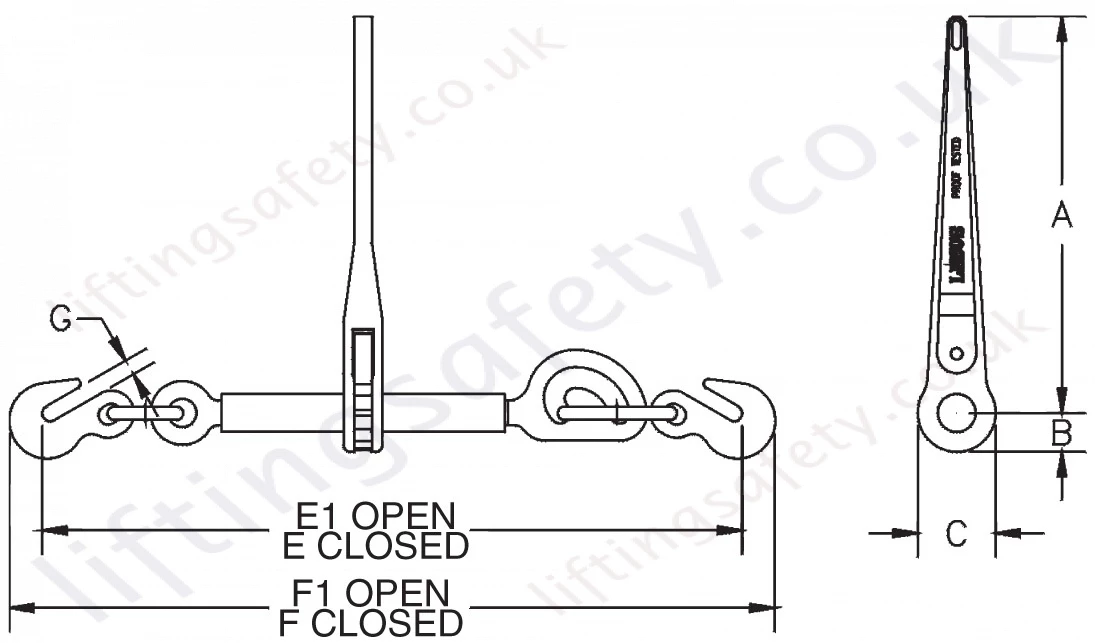

L140 drawing

All load bearings or holding parts on these binders are forged. They Utilise standard Crosby A-323 Alloy Eye Grab Hooks. Continuous take-up feature, infinite adjustment, gets the last half of chain.

  • Upgraded for use with Grades 70, 80 and 100 Chain.
  • New design "one piece" forged handle.
  • One piece assembly, no bolts or nuts to loosen.
  • Ratchet spring rust proofed.
  • Easy operating positive ratchet.

L-140 Standard Ratchet Type Load Binders
Meets or exceeds DOT and CVSA Cargo Securement Tie-Down Guidelines, November 2003.

Metric Dimensions & Specifications

      Model   L140 L140 Stock No. Min-Max Chain Size (mm) Working Load Limit (t)*   Proof Load (kN)   Weight Each (kg)   Handle Length (mm)   Barrel Length (mm)   Take Up (mm) Dimensions (mm)
A B C E E1 F F1 G
R-7** 1048404 8 - 10 4.00 79 5.49 356 254 203 356 35.1 70.0 583 786 638 842 12.7
R-A** 1048422 10 - 13 6.80 134 6.66 356 254 203 356 35.1 70.0 641 845 702 905 16.0
R-C*** 1048440 13 - 16 7.26 143 6.60 356 254 203 356 35.1 70.0 670 873 748 951 18.3

Imperial Dimensions & Specifications

Model Stock
No.		 Min-Max
Chain
Size
(in.)		 Working Load
Limit
(lbs.)*		 Proof
Load
(lbs.)		 Weight Each (lbs.) Handle Length (in.) Barrel Length
(in.)		 Take
Up
(in.)		 Dimensions
(in.)
A B C E E1 F F1 G
R-7** 1048404 5/16-3/8 8800 17600 12.11 14 10 8.0 14.00 1.38 2.75 22.94 30.94 25.13 33.13 .50
R-A** 1048422 3/8-1/2 15000 30000 14.70 14 10 8.0 14.00 1.38 2.75 25.25 33.25 27.63 35.63 .63
R-C*** 1048440 1/2-5/8 16000 32000 14.55 14 10 8.0 14.00 1.38 2.75 26.38 34.38 29.44 37.44 .72

* Ultimate Load is 3 times the Working Load Limit.
**Matches Grade 100 chain rating for both sizes.
***Matches the Working Load Limit of Grade 100 chain rating for 1/2" size.

Part N° Model Min - Max Chain Size (mm) Working Load Limit (t) Proof Load (kN) Weight Each (kg) Handle Length (mm) Barrel Length (mm) Take Up (mm) Unit Price Quantity
2450-T18687
1048404 		R-7 ** 8 - 10 4 79 5.49 356 254 203 Quote Required
2450-T18688
1048422 		R-A ** 10 - 13 6.8 134 6.66 356 254 203 Quote Required
2450-T18689
1048440 		R-C *** 13 - 16 7.26 143 6.60 356 254 203 Quote Required

Description

+

L140 drawing

All load bearings or holding parts on these binders are forged. They Utilise standard Crosby A-323 Alloy Eye Grab Hooks. Continuous take-up feature, infinite adjustment, gets the last half of chain.

  • Upgraded for use with Grades 70, 80 and 100 Chain.
  • New design "one piece" forged handle.
  • One piece assembly, no bolts or nuts to loosen.
  • Ratchet spring rust proofed.
  • Easy operating positive ratchet.

L-140 Standard Ratchet Type Load Binders
Meets or exceeds DOT and CVSA Cargo Securement Tie-Down Guidelines, November 2003.

Metric Dimensions & Specifications

      Model   L140 L140 Stock No. Min-Max Chain Size (mm) Working Load Limit (t)*   Proof Load (kN)   Weight Each (kg)   Handle Length (mm)   Barrel Length (mm)   Take Up (mm) Dimensions (mm)
A B C E E1 F F1 G
R-7** 1048404 8 - 10 4.00 79 5.49 356 254 203 356 35.1 70.0 583 786 638 842 12.7
R-A** 1048422 10 - 13 6.80 134 6.66 356 254 203 356 35.1 70.0 641 845 702 905 16.0
R-C*** 1048440 13 - 16 7.26 143 6.60 356 254 203 356 35.1 70.0 670 873 748 951 18.3

Imperial Dimensions & Specifications

Model Stock
No.		 Min-Max
Chain
Size
(in.)		 Working Load
Limit
(lbs.)*		 Proof
Load
(lbs.)		 Weight Each (lbs.) Handle Length (in.) Barrel Length
(in.)		 Take
Up
(in.)		 Dimensions
(in.)
A B C E E1 F F1 G
R-7** 1048404 5/16-3/8 8800 17600 12.11 14 10 8.0 14.00 1.38 2.75 22.94 30.94 25.13 33.13 .50
R-A** 1048422 3/8-1/2 15000 30000 14.70 14 10 8.0 14.00 1.38 2.75 25.25 33.25 27.63 35.63 .63
R-C*** 1048440 1/2-5/8 16000 32000 14.55 14 10 8.0 14.00 1.38 2.75 26.38 34.38 29.44 37.44 .72

* Ultimate Load is 3 times the Working Load Limit.
**Matches Grade 100 chain rating for both sizes.
***Matches the Working Load Limit of Grade 100 chain rating for 1/2" size.

Crosby General Info

+
Downloads

+
Crosby-catalogue-page-number-228.pdf

Crosby-catalogue-page-number-228.pdf

(approx. 0.1Mb) Crosby-catalogue-page-number-241.pdf

Product Warnings

PDF containing all warning information relevant to the safe use of this product

(approx. 0.2Mb)
