LiftingSafety Weld-on Pad Eyes, Proof Load Range from 2t to 50t

LiftingSafety Weld-on Pad Eyes, Proof Load Range from 2t to 50t

Rectangular Base Weld on Deck Plates

Model:

LWPE-5128

LiftingSafety Weld-on Pad Eyes, Proof Load Range from 2t to 50t

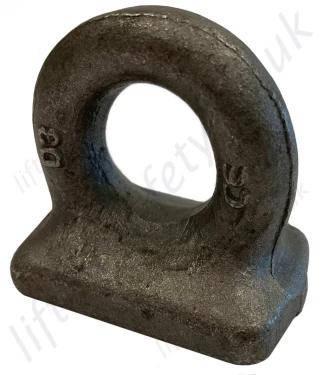

Weld On Pad Weld On Pad Eye Front Weld On Pad Eye Side
  • High tensile steel.
  • Self colour finish.
  • Based upon the Admiralty Pattern.
  • W.L.L. is subject to correct welding procedures being carried out.
  • Marked with CE, size, traceability code and proof load.

Dimensions & Specifications

Proof Load (t) A (Inch.) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg)
2 3/8 10 20 25 45 6 38 0.14
3.5 1/2 12.5 25 35 60 8 50 0.31
5.5 5/8 16 32 45 70 10 64 0.45
7.5 3/4 19 38 50 85 12 76 0.79
9.6 7/8 22 44 61 102 12 88 1.36
13 1 25 50 70 115 16 100 1.82
15.75 1-1/8 28 56 76 130 18 114 2.95
20 1-1/4 32 64 85 145 19 128 3.86
29 1-1/2 38 76 100 170 22 152 6.58
39 1-3/4 44 89 121 200 27 178  18
50 2 50 102 137 229 30 203  25

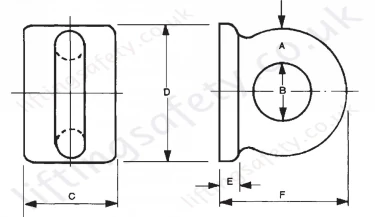

Weld On Pad Eye Dimensions



Part N° Proof Load (tonne) Eye Dia. (mm) Base Size (mm Weight (kg) Guide Price Quantity
5128-T27949 2 20 45 x 25 0.14 Quote Required
5128-T27950 3.5 25 60 x 35 0.31 Quote Required
5128-T27951 5.5 32 70 x 45 0.45 Quote Required
5128-T27952 7.5 38 85 x 50 0.79 Quote Required
5128-T27953 9.6 44 102 x 61 1.36 Quote Required
5128-T27954 13 50 115 x 70 1.82 Quote Required
5128-T27955 15.75 56 130 x 76 2.95 Quote Required
5128-T27956 20 64 145 x 85 3.86 Quote Required
5128-T27957 29 76 170 x 100 6.58 Quote Required
5128-T27958 39 89 200 x 121 18 Quote Required
5128-T27959 50 102 229 x 137 25 Quote Required

Description

+
  • High tensile steel.
  • Self colour finish.
  • Based upon the Admiralty Pattern.
  • W.L.L. is subject to correct welding procedures being carried out.
  • Marked with CE, size, traceability code and proof load.

Dimensions & Specifications

Proof Load (t) A (Inch.) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg)
2 3/8 10 20 25 45 6 38 0.14
3.5 1/2 12.5 25 35 60 8 50 0.31
5.5 5/8 16 32 45 70 10 64 0.45
7.5 3/4 19 38 50 85 12 76 0.79
9.6 7/8 22 44 61 102 12 88 1.36
13 1 25 50 70 115 16 100 1.82
15.75 1-1/8 28 56 76 130 18 114 2.95
20 1-1/4 32 64 85 145 19 128 3.86
29 1-1/2 38 76 100 170 22 152 6.58
39 1-3/4 44 89 121 200 27 178  18
50 2 50 102 137 229 30 203  25
Weld On Pad Eye Dimensions



Pricing

+
