- Lightweight and Adjustable Aluminium Tripod with Hand Winch and Pulley Sheave - 1000kg SWL
![](/images/product/3091/average/tripod-with-hand-winch-lowest-position.webp)
Lightweight and Adjustable Aluminium Tripod with Hand Winch and Pulley Sheave - 1000kg SWL
Aluminium lifting tripod with webbing hand winch at 3.7m when erected, 2.4m when collapsed.
ATC-3091
![](/images/product/3091/average/tripod-with-hand-winch-lowest-position.webp)
![Tripod With Hand Winch Lowest Position](/images/product/3091/small/tripod-with-hand-winch-lowest-position.webp)
![Tripod With Hand Winch Highest Position](/images/product/3091/small/tripod-with-hand-winch-highest-position.webp)
The Winch with crank is equipped with a drum direct-gear allowing to quickly wind up and off the unstressed webbing (with stainless shackle and safety load hook). On the basis that our standard Aluminium Tripod Crane is manufactured using an aluminium special profile that permits a load capacity of 1,000 kg, we have, therefore, also selected a Winch with the load capacity of 1,000 kg.
Tripod Features
- The winch is detachable and can be flange-mounted at any height on the Aluminium Tripod Crane.
- Greater adjusting range due to telescopic legs.
- Collapsible. Reduces to overall length (e.g. for transportation) of 2330mm x approx. 705mm Ø.
- Feet are fitted with non-slip rubber-metal linings, guaranteeing stability.
- The Aluminium Tripod Crane is designed for the lifting of loads in places that are hard to reach with conventional devices.
Specifications
- Load capacity: 1000kg. Minimum 25kg (starting weight for functional load pressure brake).
- Winch webbing width: 50mm.
- Webbing strap length: 20m.
- Average lift per winch rotation (depending on remaining webbing / belt position): 23-57 mm.
Dimensions
- Achievable lifting height (raised): 2790mm
- Total height of the tripod, adjustable between 2202mm and 3630mm.

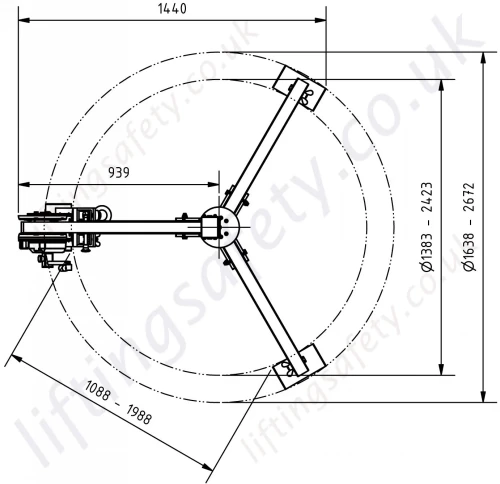

- Assembly dia. (circle diameter), 1638 to 2672mm (depending on assembled height)
![Height Dimensions Height Dimensions](/images/product/3091/big/height-dimensions.webp)
![Width Dimensions Width Dimensions](/images/product/3091/big/width-dimensions.webp)
![Stored Length Stored Length](/images/product/3091/big/stored-length.webp)
![Stored Width Depth Stored Width Depth](/images/product/3091/medium/stored-width-depth.webp)
The Winch with crank is equipped with a drum direct-gear allowing to quickly wind up and off the unstressed webbing (with stainless shackle and safety load hook). On the basis that our standard Aluminium Tripod Crane is manufactured using an aluminium special profile that permits a load capacity of 1,000 kg, we have, therefore, also selected a Winch with the load capacity of 1,000 kg.
Tripod Features
- The winch is detachable and can be flange-mounted at any height on the Aluminium Tripod Crane.
- Greater adjusting range due to telescopic legs.
- Collapsible. Reduces to overall length (e.g. for transportation) of 2330mm x approx. 705mm Ø.
- Feet are fitted with non-slip rubber-metal linings, guaranteeing stability.
- The Aluminium Tripod Crane is designed for the lifting of loads in places that are hard to reach with conventional devices.
Specifications
- Load capacity: 1000kg. Minimum 25kg (starting weight for functional load pressure brake).
- Winch webbing width: 50mm.
- Webbing strap length: 20m.
- Average lift per winch rotation (depending on remaining webbing / belt position): 23-57 mm.
Dimensions
- Achievable lifting height (raised): 2790mm
- Total height of the tripod, adjustable between 2202mm and 3630mm.
- Assembly dia. (circle diameter), 1638 to 2672mm (depending on assembled height)
![Height Dimensions Height Dimensions](/images/product/3091/big/height-dimensions.webp)
![Width Dimensions Width Dimensions](/images/product/3091/big/width-dimensions.webp)
![Stored Length Stored Length](/images/product/3091/big/stored-length.webp)
![Stored Width Depth Stored Width Depth](/images/product/3091/medium/stored-width-depth.webp)
