Automatic Hook and Release System, WLL: 5000kg

Automatic Hook and Release System, WLL: 5000kg

Electronically Operated Hook with Wireless Control, and Optional Accessories.

Model:

AHLA-5099

Automatic Hook and Release System, WLL: 5000kg

5 Ton Electonic Hook With Optional Magnetic Module Radio Contol Automatic Hook Dimensions

Manufactured using premium components, this automatic hook system effectively minimises the hazards that users are normally exposed to in a straightforward, safe and automated manner. The solution for efficient work processes, safe working methods and satisfied employees.

Thanks to its high-performance features, lifting and lowering loads is now easier than ever before. The entire workflow is performed via a radio control unit. Automated unloading eliminates time-intensive manual workflows, which can be performed faster and with optimised use of resources.

The automation enables safe work even in high altitude and dangerous situations - a problem solver for people and load!

Operator safety should be the top priority at all times. The auto. hook makes that a reality: Operated by radio control, the rotatable lifting hook gets perfect grip straightaway and releases the load without manual assistance.

Features

  • Provides support when working at height or in deep construction pits.
  • Withstands temperatures that put a strain on the user (-20 °C to +60 °C / -4 °F to +140 °F).
  • A safe partner when it comes to hazards that may be detected too late (e.g. odourless gases in cesspits).
  • Allows for the targeted use of human resources (crane operator is able to attach and release the load independently).
  • Accidental opening of the hook under load is not possible, secured communication  between hook and remote control, Safety factor against break: 4:1.
  • Patented tool-free locking of the rotation lock, tool-free initial mounting and TÜV-certified.
  • Up to 8,000 operating cycles without a break, hook opens and closes within 2.5 seconds.
  • IP 65 Rated
  • General / Mechanical components comply with the following standards: ISO 9001, EN 1677, EN 10204 3.1.B, Machinery Directive 2006/42/EG

Dimensions & Specifications

WLL (kg) 5000
 e (mm) 460
a (mm) 32
b1 (mm) 156
b2 (mm) 220
d1 (mm) 54
d2 (mm) 61
g (mm) 29
h (mm) 528
h1 (mm) 46
w (mm) 142
Weight (kg) 20

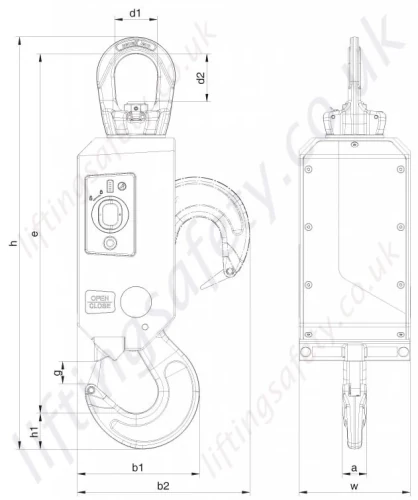

Automatic Hook Dimensions

Basic Kit

  • Automatic Hook.
  • Practicable remote control (with Lanyard).
  • Battery.
  • Charging station.
  • Clear product identification.
  • Operation manual.

Optional Accessories

  • Lighting module, a light on the bottom to illuminate the hook and load.
  • Magnetic module, for picking up master links to allow the operator to hook in to them remotely.
  • Data logger (records all data of the Automatic hook).
  • Multi loading Adapter, makes it possible to load up to 10 batteries.
  • Weighing module, with tare function. To control the weight of your loads and to avoid overloading. Only in combination with the 'Manager' software.
  • 'Manager' software is a comprehensive configuration tool and analysis tool for the Automatic Hook.
    Technical product training courses and certified eLearning platform.

Hoist Dimensions & Specifications will be uploaded here soon..... if in the mean time if you do require these or any further information Contact us confirming the Model (in the little red box above) and Capacity and we will happily send what you need.....Thank you.

The Sales Team

Pricing

Unit Price

£

Request Quote
Add to Quote Request
Description

+

Manufactured using premium components, this automatic hook system effectively minimises the hazards that users are normally exposed to in a straightforward, safe and automated manner. The solution for efficient work processes, safe working methods and satisfied employees.

Thanks to its high-performance features, lifting and lowering loads is now easier than ever before. The entire workflow is performed via a radio control unit. Automated unloading eliminates time-intensive manual workflows, which can be performed faster and with optimised use of resources.

The automation enables safe work even in high altitude and dangerous situations - a problem solver for people and load!

Operator safety should be the top priority at all times. The auto. hook makes that a reality: Operated by radio control, the rotatable lifting hook gets perfect grip straightaway and releases the load without manual assistance.

Features

  • Provides support when working at height or in deep construction pits.
  • Withstands temperatures that put a strain on the user (-20 °C to +60 °C / -4 °F to +140 °F).
  • A safe partner when it comes to hazards that may be detected too late (e.g. odourless gases in cesspits).
  • Allows for the targeted use of human resources (crane operator is able to attach and release the load independently).
  • Accidental opening of the hook under load is not possible, secured communication  between hook and remote control, Safety factor against break: 4:1.
  • Patented tool-free locking of the rotation lock, tool-free initial mounting and TÜV-certified.
  • Up to 8,000 operating cycles without a break, hook opens and closes within 2.5 seconds.
  • IP 65 Rated
  • General / Mechanical components comply with the following standards: ISO 9001, EN 1677, EN 10204 3.1.B, Machinery Directive 2006/42/EG

Dimensions & Specifications

WLL (kg) 5000
 e (mm) 460
a (mm) 32
b1 (mm) 156
b2 (mm) 220
d1 (mm) 54
d2 (mm) 61
g (mm) 29
h (mm) 528
h1 (mm) 46
w (mm) 142
Weight (kg) 20
Automatic Hook Dimensions

Basic Kit

  • Automatic Hook.
  • Practicable remote control (with Lanyard).
  • Battery.
  • Charging station.
  • Clear product identification.
  • Operation manual.

Optional Accessories

  • Lighting module, a light on the bottom to illuminate the hook and load.
  • Magnetic module, for picking up master links to allow the operator to hook in to them remotely.
  • Data logger (records all data of the Automatic hook).
  • Multi loading Adapter, makes it possible to load up to 10 batteries.
  • Weighing module, with tare function. To control the weight of your loads and to avoid overloading. Only in combination with the 'Manager' software.
  • 'Manager' software is a comprehensive configuration tool and analysis tool for the Automatic Hook.
    Technical product training courses and certified eLearning platform.
Dimensions and Specifications

+

Hoist Dimensions & Specifications will be uploaded here soon..... if in the mean time if you do require these or any further information Contact us confirming the Model (in the little red box above) and Capacity and we will happily send what you need.....Thank you.

The Sales Team
