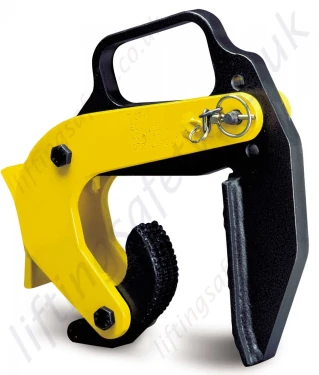

Camlok BTG Concrete Pipe Clamps, Capacity Range 1500kg or 3000kg

The BTG concrete pipe lifting clamps are sold in sets of three and they come complete with chain slings (the working load limits 1500kg or 3000kg are based on a set of three clamps used simultaneously).

Designed for the vertical transportation of concrete pipe sections with a diameter of up to 2000mm.

These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person.

• Simple design means easy attachment and removal of the clamps from the pipes.
• Solid construction.
• Large jaw capacity - pipe thickness of 40 - 220mm
• Factor of safety 4:1.
• For heavy duty use.
• Lightweight design.
• Service friendly.
• For concrete according to DIN4034.
• Hint: Tie a light rope to the handle to aid in the removal of clamps from deep well

Dimensions & Specifications

Model	WLL (kg)Per set of 3	Z – Jaw Capacity (mm)	E – Jaw Depth (mm)	F – Pressure line (mm)	A (mm)	B (mm)	C (mm)	D (mm)	Weight* (kg)
BTG1500/3	1500	40 - 120	165	100	135	75	18	180	34
BTG3000/3	3000	50 - 180	245	175	180	100	26	310	60

*Weight per set of three including chain sling.
