Fixed Position Fork Lift truck Mounted "Lifting Hook" to Position on Forklift Tines, Fixed to the Heel Of the Forks - Range From 1000kg to 5000kg

Fixed Position Fork Lift truck Mounted "Lifting Hook" to Position on Forklift Tines, Fixed to the Heel Of the Forks - Range From 1000kg to 5000kg

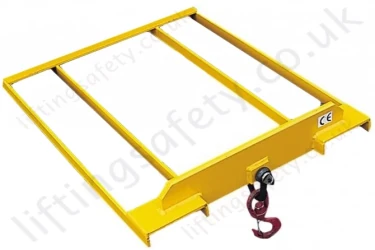

Fixed fork mounted hook attachment.

Model:

FFMH-616

Fixed Position Fork Lift truck Mounted "Lifting Hook" to Position on Forklift Tines, Fixed to the Heel Of the Forks - Range From 1000kg to 5000kg

Fork Truck Tine Fixed Hook Fork Truck Mounted Hook

Fixed forklift hook attachment that is a simple and cost effective means of converting your forklift into a mobile crane, and comes supplied with a high quality hook and shackle.

The forklift hook comes with a fixed lifting reach of either 600mm or 900mm along the forklift blade length. To prevent movement and safely ensure the forklift hook cannot slip off the forklift forks whilst under load, the unit is securely retained to the forklift forks via anchor bars that locate behind the fork heel.

  • Lightweight construction allows the forklift hook to be fitted quickly and easily.
  • Simple design offering low maintenance and operating costs.
  • Fixed reach along the fork length ensures a safe lifting position each time.
  • High quality hook and shackle to ensure load being handled is lifted safely.
  • In built retaining bars fitted behind the fork heels prevents the attachment from moving forward along the forks.
  • 'CE' marked.

Sepcifications

Part No. Capacity (kg) Max Fork Size (mm) Fork Spread (mm) C of G (mm) Length (mm) Weight (kg)
616-T12297 1000 150 x 50 713 438 600 29
616-T12298 1000 150 x 50 713 651 900 33
616-T12299 1300 150 x 50 713 438 600 30
616-T12300 1300 150 x 50 713 651 900 33
616-T12301 2000 150 x 50 713 438 600 31
616-T12302 2000 150 x 50 713 651 900 34
616-T12303 2500 150 x 50 713 438 600 33
616-T12304 2500 150 x 50 713 651 900 36
616-T12305 3000 150 x 50 713 651 600 36
616-T12306 3000 150 x 50 713 651 900 38
616-T12307 5000 150 x 50 713 690 600 43
616-T12308 5000 150 x 50 713 720 900 45
Part N° Capacity Max Fork Size (mm) Weight (kg) Length (mm) Guide Price Quantity
616-T12297 1000kg 150 x 50 29 600 Quote Required
616-T12298 1000kg 150 x 50 33 900 Quote Required
616-T12299 1300kg 150 x 50 30 600 Quote Required
616-T12300 1300kg 150 x 50 33 900 Quote Required
616-T12301 2000kg 150 x 50 31 600 Quote Required
616-T12302 2000kg 150 x 50 34 900 Quote Required
616-T12303 2500kg 150 x 50 33 600 Quote Required
616-T12304 2500kg 150 x 50 36 900 Quote Required
616-T12305 3000kg 150 x 50 36 600 Quote Required
616-T12306 3000kg 150 x 50 38 900 Quote Required
616-T12307 5000kg 150 x 50 43 600 Quote Required
616-T12308 5000kg 150 x 50 45 900 Quote Required

Description

+

Fixed forklift hook attachment that is a simple and cost effective means of converting your forklift into a mobile crane, and comes supplied with a high quality hook and shackle.

The forklift hook comes with a fixed lifting reach of either 600mm or 900mm along the forklift blade length. To prevent movement and safely ensure the forklift hook cannot slip off the forklift forks whilst under load, the unit is securely retained to the forklift forks via anchor bars that locate behind the fork heel.

  • Lightweight construction allows the forklift hook to be fitted quickly and easily.
  • Simple design offering low maintenance and operating costs.
  • Fixed reach along the fork length ensures a safe lifting position each time.
  • High quality hook and shackle to ensure load being handled is lifted safely.
  • In built retaining bars fitted behind the fork heels prevents the attachment from moving forward along the forks.
  • 'CE' marked.

Sepcifications

Part No. Capacity (kg) Max Fork Size (mm) Fork Spread (mm) C of G (mm) Length (mm) Weight (kg)
616-T12297 1000 150 x 50 713 438 600 29
616-T12298 1000 150 x 50 713 651 900 33
616-T12299 1300 150 x 50 713 438 600 30
616-T12300 1300 150 x 50 713 651 900 33
616-T12301 2000 150 x 50 713 438 600 31
616-T12302 2000 150 x 50 713 651 900 34
616-T12303 2500 150 x 50 713 438 600 33
616-T12304 2500 150 x 50 713 651 900 36
616-T12305 3000 150 x 50 713 651 600 36
616-T12306 3000 150 x 50 713 651 900 38
616-T12307 5000 150 x 50 713 690 600 43
616-T12308 5000 150 x 50 713 720 900 45
Downloads

+
Fork-mounted-hook-dims.pdf

Technical Dimensions

Technical information including dimesnions and weights.

(approx. 0.7Mb)
