Grade 8 / 80 Lifting Chain, Chain Size 7mm to 32mm

Grade 8 / 80 Lifting Chain, Chain Size 7mm to 32mm

Grade 'T' (8/80) alloy steel lifting chain specifically designed for chain slings, chain conforms to BS EN 818-2. WLL 1.5 tonne to 31.5 tonne

Model:

AS1.5 Series / G8LC-3330

Grade 8 / 80 Lifting Chain, Chain Size 7mm to 32mm

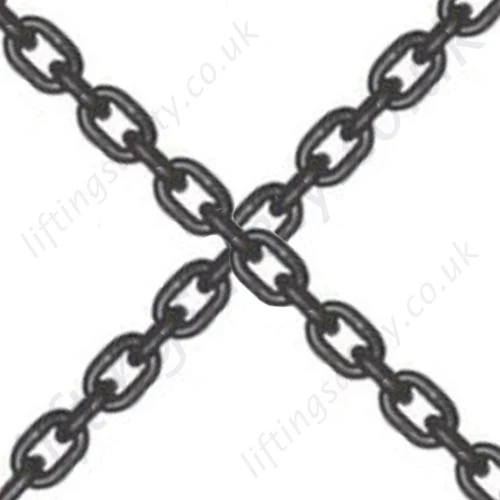

Grade 8 Lifting Chain Grade 80 Lifting Chain

This Alloy Steel Chain is manufactured specifically for use in chain slings for lifting purposes. The chain is heat-treated for tensile strength and resistance to wear whilst also allowing for shock absorption. The chain is easily identifiable with "MA8" embossed at metre intervals.

Chain Properties

  • Work Load Limit (WLL) is the maximum load which the chains are designed to sustain in lifting use. The mean stress at this load is 200n/mm2 (MPA) and is based on a 4:1 factor of safety.
  • Manufacturing Proof Force (MPF) is the force to which during manufacture the chain is subjected to. The mean stress at this load is 500n/mm2 (MPA) which is 2.5 times the working load limit.
  • Minimum Breaking Load (MBL) is the minimum force of which the chain must withstand before failure. The mean stress at this load is 800n/mm2 (MPA). The minimum elongation before failure is 20%.

Chain Specifications

Dimensional Drawing

A B (mm) C (mm) WLL Weight per metre (kg) Metres per Drum
7mm 21 25.9 1.5t (1500kg) 1.1 500
8mm 24 29.6 2.0t (2000kg) 1.5 350
10mm 30 37.0 3.15t (3150kg) 2.2 250
13mm 39 48.1 5.3t (5300kg) 3.8 150
16mm 48 59.2 8.0t (8000kg) 5.8 100
20mm 60 74.0 12.5t (12500kg) 9.1 60
22mm 66 81.4 15.0t (15000kg) 11.0 50
26mm 78 96.2 21.2t (21200kg) 15.3 30
32mm 96 118.0 31.5t (31500kg) 23.2 25

Looking for a Pre-Assembled Chain Sling?

As well as loose lengths of grade 80 chain and grade 80 chain components, we also offer fully assembled and certified lifting chain sling assemblies.

Pricing

@ £5.68 (min:1,max:500) (1 included in price)
Unit Price

£5.68
Add to Quote Request
Description

+

This Alloy Steel Chain is manufactured specifically for use in chain slings for lifting purposes. The chain is heat-treated for tensile strength and resistance to wear whilst also allowing for shock absorption. The chain is easily identifiable with "MA8" embossed at metre intervals.

Chain Properties

  • Work Load Limit (WLL) is the maximum load which the chains are designed to sustain in lifting use. The mean stress at this load is 200n/mm2 (MPA) and is based on a 4:1 factor of safety.
  • Manufacturing Proof Force (MPF) is the force to which during manufacture the chain is subjected to. The mean stress at this load is 500n/mm2 (MPA) which is 2.5 times the working load limit.
  • Minimum Breaking Load (MBL) is the minimum force of which the chain must withstand before failure. The mean stress at this load is 800n/mm2 (MPA). The minimum elongation before failure is 20%.

Chain Specifications

Dimensional Drawing

A B (mm) C (mm) WLL Weight per metre (kg) Metres per Drum
7mm 21 25.9 1.5t (1500kg) 1.1 500
8mm 24 29.6 2.0t (2000kg) 1.5 350
10mm 30 37.0 3.15t (3150kg) 2.2 250
13mm 39 48.1 5.3t (5300kg) 3.8 150
16mm 48 59.2 8.0t (8000kg) 5.8 100
20mm 60 74.0 12.5t (12500kg) 9.1 60
22mm 66 81.4 15.0t (15000kg) 11.0 50
26mm 78 96.2 21.2t (21200kg) 15.3 30
32mm 96 118.0 31.5t (31500kg) 23.2 25

Looking for a Pre-Assembled Chain Sling?

As well as loose lengths of grade 80 chain and grade 80 chain components, we also offer fully assembled and certified lifting chain sling assemblies.
