Yoke Grade 8 Self-Locking Clevis Hooks for use with 7mm to 22mm Lifting Chain

Yoke Grade 8 Self-Locking Clevis Hooks for use with 7mm to 22mm Lifting Chain

Grade 8 / 80 clevis safety hook for use with grade 8 lifting chain.

Model:

8-026 Series / G8SC-3455

Yoke Grade 8 Self-Locking Clevis Hooks for use with 7mm to 22mm Lifting Chain

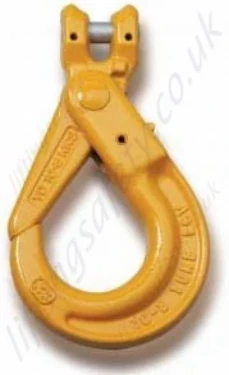

Gr8 Clevis Self Locking Hook

Clevis self locking hook / safety hook for use with grade 8 / grade 80 chain sling assemblies, supplied with load pin and retaining pins.

Grade 80 forged lifting components manufactured from alloy steel in accordance with EN1677.

All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.

These Grade 80 lifting components are suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit.

Dimensions and Specifications

Chain Size (mm) A (mm) H (mm) K (mm) P (mm) T (mm) WLL (t) Weight (kg)
7 and 8 9 24 119 34 20 2.0 0.8
10 11 30 143 44 26 3.15 1.4
13 14 39 179 52 30 5.3 2.9
16 18 49 212 60 36 8.0 5.6
20 21 62 243 90 48 12.5 9
22 24 63 273 80 49 15 13
Grade 8 Safety Hook Dimensions
Part N° Chain Size (mm) WLL (t) Weight (kg) Unit Price Quantity
3455-T6952
8-026-07 		7 & 8 2 0.8 £  31.00
3455-T6953
8-026-10 		10 3.15 1.4 £  39.00
3455-T6954
8-026-13 		13 5.3 2.9 £  78.50
3455-T6955
8-026-16 		16 8 5.6 £  148.00
3455-T6956
8-026-20 		20 12.5 9.0 £  328.00
3455-T6957
8-026-22 		22 15 13.0 £  458.00

Description

+

Clevis self locking hook / safety hook for use with grade 8 / grade 80 chain sling assemblies, supplied with load pin and retaining pins.

Grade 80 forged lifting components manufactured from alloy steel in accordance with EN1677.

All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.

These Grade 80 lifting components are suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit.

Dimensions and Specifications

Chain Size (mm) A (mm) H (mm) K (mm) P (mm) T (mm) WLL (t) Weight (kg)
7 and 8 9 24 119 34 20 2.0 0.8
10 11 30 143 44 26 3.15 1.4
13 14 39 179 52 30 5.3 2.9
16 18 49 212 60 36 8.0 5.6
20 21 62 243 90 48 12.5 9
22 24 63 273 80 49 15 13
Grade 8 Safety Hook Dimensions
