Green Pin Fixed Nut Shackles, Range from 2 tonne to 175 tonne

Green Pin Fixed Nut Shackles, Range from 2 tonne to 175 tonne

GreenPin bow and dee shackles with fixed pin - Avoid the risk of accidentally releasing a load when it is under dynamic load or when exposed to extreme vibration.

Model:

GPGF-4968

Green Pin Fixed Nut Shackles, Range from 2 tonne to 175 tonne

G 4143 Green Pin Bow Shackle G 4133 Green Pin Dee Shackle G 4143 Green Pin Bow Shackle G 5243 Green Pin Super Bow Shackle G 5143 Green Pin Polar Bow Shackle

Sometimes shackles are not used for lifting applications but for more permanent constructions.

These can be subject to dynamic loads and/or extreme vibrations. In such applications there is a risk that, over time, the nut starts moving over the thread.

To avoid this risk we offer the range of Green Pin Fixed Nut Shackles.

Green Pin Standard, Polar and Super shackles can be equipped with a feature that consists of an extra AISI 316 securing bolt which is drilled through the nut and shackle pin. This securing bolt is fastened with two sets of Nord-Lock washers (which lock when subjected to extreme vibration or dynamic loads) and a securing nut. This will keep the shackle nut in position.

Fixed Nut Shackle
  1. Securing Nut
  2. Lock Washers
  3. Shackle Pin
  4. Split pin
  5. Lock Washers
  6. Securing bolt
  7. Shackle Nut

Green Pin Fixed Nut Shackle Types

G-4143 Safety Bow Shackle

Green Pin Fixed Nut Safety Bow Shackle
  • Capacity Options: 2 to 85 tonne
  • EN-13889
  • Grade 6

G-4133 Safety Dee Shackle

Green Pin Fixed Nut Safety Dee Shackle
  • Capacity Options: 2 to 85 tonne
  • EN-13889
  • Grade 6

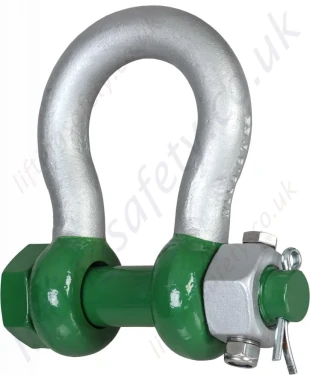

G-5143 Polar Shackle

Green Pin Fixed Nut Polar Bow Shackle
  • Capacity Options: 2 to 85 tonne
  • EN-13889
  • Grade 6

G-5243 Super Shackle

Green Pin Fixed Nut Super Bow Shackle
  • Capacity Options: 3.3 to 175 tonne
  • US Fed Spec RR-C-271
  • Grade 8

P-6013 Sling Shackle

Green Pin Fixed Nut Sling Shackle
  • Capacity Options: 7 to 150 tonne
  • Grade 8

G-4243 Wide Mouth Bow Shackle

Green Pin Fixed Nut Wide Mouth Bow Shackle
  • Capacity Options: 4.75 to 75 tonne
  • Grade 8

Pricing

Unit Price

£

Request Quote
Add to Quote Request
Description

+

Sometimes shackles are not used for lifting applications but for more permanent constructions.

These can be subject to dynamic loads and/or extreme vibrations. In such applications there is a risk that, over time, the nut starts moving over the thread.

To avoid this risk we offer the range of Green Pin Fixed Nut Shackles.

Green Pin Standard, Polar and Super shackles can be equipped with a feature that consists of an extra AISI 316 securing bolt which is drilled through the nut and shackle pin. This securing bolt is fastened with two sets of Nord-Lock washers (which lock when subjected to extreme vibration or dynamic loads) and a securing nut. This will keep the shackle nut in position.

Fixed Nut Shackle
  1. Securing Nut
  2. Lock Washers
  3. Shackle Pin
  4. Split pin
  5. Lock Washers
  6. Securing bolt
  7. Shackle Nut

Green Pin Fixed Nut Shackle Types

G-4143 Safety Bow Shackle

Green Pin Fixed Nut Safety Bow Shackle
  • Capacity Options: 2 to 85 tonne
  • EN-13889
  • Grade 6

G-4133 Safety Dee Shackle

Green Pin Fixed Nut Safety Dee Shackle
  • Capacity Options: 2 to 85 tonne
  • EN-13889
  • Grade 6

G-5143 Polar Shackle

Green Pin Fixed Nut Polar Bow Shackle
  • Capacity Options: 2 to 85 tonne
  • EN-13889
  • Grade 6

G-5243 Super Shackle

Green Pin Fixed Nut Super Bow Shackle
  • Capacity Options: 3.3 to 175 tonne
  • US Fed Spec RR-C-271
  • Grade 8

P-6013 Sling Shackle

Green Pin Fixed Nut Sling Shackle
  • Capacity Options: 7 to 150 tonne
  • Grade 8

G-4243 Wide Mouth Bow Shackle

Green Pin Fixed Nut Wide Mouth Bow Shackle
  • Capacity Options: 4.75 to 75 tonne
  • Grade 8
