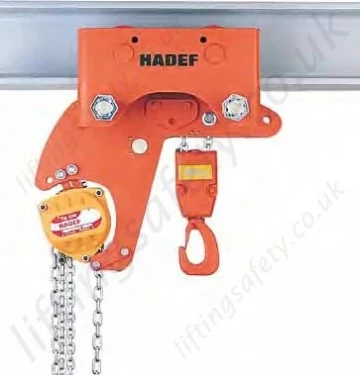

Hadef "28/98" Low Headroom Manual Chain Hoist with Beam Trolley

Hadef "28/98" Low Headroom Manual Chain Hoist with Beam Trolley

Low profile hand chain block with built-in push travel or geared trolley.

Model:

28/98 / HLHM-4359

Description

Incorporating Spur Gear Hoist Type 9/12
Low headroom configuration
Hoist protection by slipping-clutch
Zinc plated high quality load chain acc. to EN 818-7-T
Zinc plated hand chain acc. to DIN 766
Trolley with two load bars ensures excellent traverse travel ability
Manufactured in Germany

Specifications

Capacity (kg)	Chain Falls	Hook to Hook Dimension (mm)	Load Chain Diameter (mm)	Load Chain @ 3m Suspension Height (m)	Flange Width (mm)	Weight (kg)
500	1	222	5.0	3.8	82-185 186-310	35
1000	1	264	6.3	3.8	76-196 197-310	42
1500	1	327	8.0	3.8	125-192 193-302	76
2000	2	325	6.3	7.0	76-196 197-310	78
3000	2	384	8.0	7.0	125-192 193-302	104
5000	3	507	8.0	9.8	140-215 216-312	165
10,000	2	760	13.0	7.4	119-218 219-310	810
15,000	3	786	13.0	9.9	162-310	-
20,000	4	786	16.0	12.4	158-310	-
25,000	5	885	13.0	14.9	170-310	-

Trolley Type

Capacity (kg)

Flange Width (mm)

Track Height (m)

(min:3) (3 included in price)

Lifting Height (m)

(min:3) (3 included in price)

Accessories

End Stops

Unit Price Quote Only

Quantity

Add to Quote Request

Incorporating Spur Gear Hoist Type 9/12
Low headroom configuration
Hoist protection by slipping-clutch
Zinc plated high quality load chain acc. to EN 818-7-T
Zinc plated hand chain acc. to DIN 766
Trolley with two load bars ensures excellent traverse travel ability
Manufactured in Germany

Specifications

Capacity (kg)	Chain Falls	Hook to Hook Dimension (mm)	Load Chain Diameter (mm)	Load Chain @ 3m Suspension Height (m)	Flange Width (mm)	Weight (kg)
500	1	222	5.0	3.8	82-185 186-310	35
1000	1	264	6.3	3.8	76-196 197-310	42
1500	1	327	8.0	3.8	125-192 193-302	76
2000	2	325	6.3	7.0	76-196 197-310	78
3000	2	384	8.0	7.0	125-192 193-302	104
5000	3	507	8.0	9.8	140-215 216-312	165
10,000	2	760	13.0	7.4	119-218 219-310	810
15,000	3	786	13.0	9.9	162-310	-
20,000	4	786	16.0	12.4	158-310	-
25,000	5	885	13.0	14.9	170-310	-
