Heavy Duty Fork Mounted (and Crane slung) Drum Rotator. Rotation by Loop Chain or Crank Handle - 1000kg

Heavy Duty Fork Mounted (and Crane slung) Drum Rotator. Rotation by Loop Chain or Crank Handle - 1000kg

Heavy duty crane slung or fork mounted drum rotator with loop chain or crank handle operation.

Model:

HDDR-573

Heavy Duty Fork Mounted (and Crane slung) Drum Rotator. Rotation by Loop Chain or Crank Handle - 1000kg

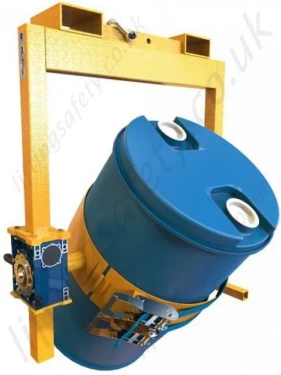

Fork Mounted Or Crane Slung Drum Rotator Fork Mounted Or Crane Slung Hand Chain Drum Rotator Drum Types

Suitable for use with both 210 litre steel and plastic ('L' & 'XL' ring) drums, these drum rotators can be used with both a forklift truck and overhead crane.

Drum rotation is carried out via a manual crank handle or loop chain (model dependant), which is connected to a high quality gearbox.  Due to the gearing ratio, drum rotation can be carried out with ease with minimal effort.

  • Fitted with fork pockets for forklift use and a lifting eye for crane use, thus offering better utilisation of available plant.
  • High quality gearbox to drain drums fully whilst eliminating manual handling and reducing risk of back strain.
  • Manually adjustable drum girdle that grips drum firmly, eliminating risk of drum slippage and subsequent damage costs and contents loss.
  • Generous size 'drive in' fork pockets to allow quick fitting on and off forklift.
  • 'CE' marked.

Drum Types

Drum Types

Dimensions

Dimensional Drawing

Part N° Max SWL Max Fork Size (mm) Method of Operation Drum Type Weight (kg) Guide Price Quantity
573-T12178 1000kg 140 x 50 Crank Handle 1 120 Quote Required
573-T12179 1000kg 140 x 50 Loop Chain 1 126 Quote Required

Description

+

Suitable for use with both 210 litre steel and plastic ('L' & 'XL' ring) drums, these drum rotators can be used with both a forklift truck and overhead crane.

Drum rotation is carried out via a manual crank handle or loop chain (model dependant), which is connected to a high quality gearbox.  Due to the gearing ratio, drum rotation can be carried out with ease with minimal effort.

  • Fitted with fork pockets for forklift use and a lifting eye for crane use, thus offering better utilisation of available plant.
  • High quality gearbox to drain drums fully whilst eliminating manual handling and reducing risk of back strain.
  • Manually adjustable drum girdle that grips drum firmly, eliminating risk of drum slippage and subsequent damage costs and contents loss.
  • Generous size 'drive in' fork pockets to allow quick fitting on and off forklift.
  • 'CE' marked.

Drum Types

Drum Types
Dimensions

+

Dimensions

Dimensional Drawing

Pricing

+
