  7. Crosby 'IPHGUZ' & 'IPHGZ' Horizontal Plate Clamp with Locking Device, WLL Range from 750kg to 4500kg
Crosby 'IPHGUZ' & 'IPHGZ' Horizontal Plate Clamp with Locking Device, WLL Range from 750kg to 4500kg

Crosby 'IPHGUZ' & 'IPHGZ' Horizontal Plate Clamp with Locking Device, WLL Range from 750kg to 4500kg

Crosby IP Horizontal Plate Clamp with Locking Device.

Model:

Crosby IPHGUZ and IPHGZ / HPC-893

Crosby 'IPHGUZ' & 'IPHGZ' Horizontal Plate Clamp with Locking Device, WLL Range from 750kg to 4500kg

Crosby Iphguz Horizontal Lifting Clamp With Universal Eye Crosby Iphguz Iphgz Loading Angles Crosby Iphgz Horizontal Lifting Clamp With Fixed Eye Crosby Iphgz Horizontal Lifting Clamp

The Crosby IPHGZ and IPHGUZ horizontal lifting clamps have a pretension locking feature that allows the user to attach the clamps to the material for horizontal lifting and
transfer of sagging and non-sagging material.

These clamps may also be used to handle material that will be used in shears, bending and rolling machines or other fabrication equipment, and may also be used to move and lift structural shapes such as I-Beams, H-beams etc.

  • Available in capacities of 1.5 thru 4.5 metric tons.
  • Jaw openings available: 0 to 40mm.
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • Individually Proof Tested to 2 times the Working Load Limit.
  • Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp.
  • Maintenance and repair kits are available.
  • Manufactured by an ISO 9001 facility.
  • All sizes are RFID EQUIPPED.

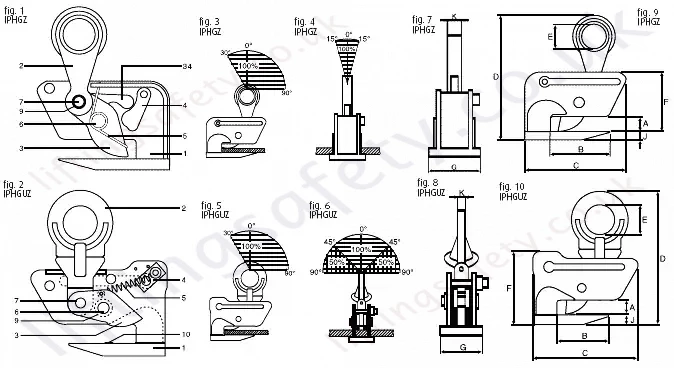

Metric Dimensions & Specifications

Model Working Load Limit (t)* Stock No. Weight Each (kg) Dimensions (mm)
        Jaw A B C D E F G J K
IPHGUZ with Universal Hoisting Eye
IPHGUZ 1.5 2705455 9 0 - 25 110 232 287 70 139 90 20 16
IPHGUZ 3 2705456 19.9 0 - 40 119 253 348 75 175 120 25 20
IPHGUZ 4.5 2705457 30 0 - 40 119 301 370 80 175 155 30 44
IPHGZ Fixed Hoisting Eye
IPHGZ 0.75 2705451 4 0 - 25 82 148 206 50 99 98 12 22
IPHGZ 1.5 2705452 7.3 0 - 25 110 200 250 50 118 90 20 28
IPHGZ 3 2705453 12.3 0 - 40 120 227 305 70 148 120 25 32
IPHGZ 4.5 2705454 25 0 - 40 120 284 381 70 181 155 30 40





Part N° Model WLL Eye Type Weigh per Clamp (kg) Jaw (mm) Price per Clamp Unit Price Quantity
893-T14328
2705455 		IPHGUZ 750kg Universal 9.0 0-25 Yes Quote Required
893-T14329
2705456 		IPHGUZ 1500kg Universal 19.9 0-40 Yes Quote Required
893-T14330
2705457 		IPHGUZ 3000kg Universal 30.0 0-40 Yes Quote Required
893-T14331
2705451 		IPHGZ 4500kg Fixed 4.0 0-25 Yes Quote Required
893-T23148
2705452 		IPHGZ 1500kg Fixed 7.3 0-25 Yes Quote Required
893-T23149
2705453 		IPHGZ 3000kg Fixed 12.3 0-40 Yes Quote Required
893-T23150
2705454 		IPHGZ 4500kg Fixed 25.0 0-40 Yes Quote Required
Item sold separately (price per piece)

Description

+

The Crosby IPHGZ and IPHGUZ horizontal lifting clamps have a pretension locking feature that allows the user to attach the clamps to the material for horizontal lifting and
transfer of sagging and non-sagging material.

These clamps may also be used to handle material that will be used in shears, bending and rolling machines or other fabrication equipment, and may also be used to move and lift structural shapes such as I-Beams, H-beams etc.

  • Available in capacities of 1.5 thru 4.5 metric tons.
  • Jaw openings available: 0 to 40mm.
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • Individually Proof Tested to 2 times the Working Load Limit.
  • Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp.
  • Maintenance and repair kits are available.
  • Manufactured by an ISO 9001 facility.
  • All sizes are RFID EQUIPPED.

Metric Dimensions & Specifications

Model Working Load Limit (t)* Stock No. Weight Each (kg) Dimensions (mm)
        Jaw A B C D E F G J K
IPHGUZ with Universal Hoisting Eye
IPHGUZ 1.5 2705455 9 0 - 25 110 232 287 70 139 90 20 16
IPHGUZ 3 2705456 19.9 0 - 40 119 253 348 75 175 120 25 20
IPHGUZ 4.5 2705457 30 0 - 40 119 301 370 80 175 155 30 44
IPHGZ Fixed Hoisting Eye
IPHGZ 0.75 2705451 4 0 - 25 82 148 206 50 99 98 12 22
IPHGZ 1.5 2705452 7.3 0 - 25 110 200 250 50 118 90 20 28
IPHGZ 3 2705453 12.3 0 - 40 120 227 305 70 148 120 25 32
IPHGZ 4.5 2705454 25 0 - 40 120 284 381 70 181 155 30 40
