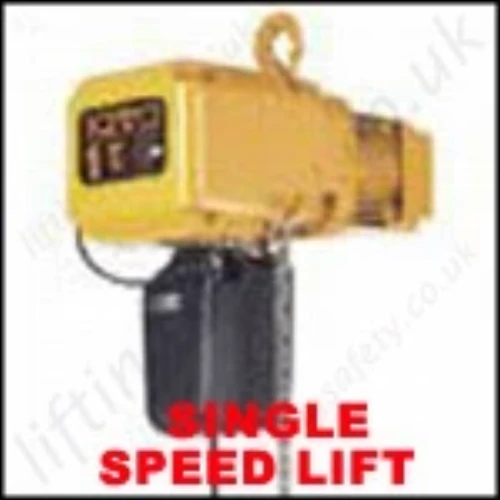

Kito ER Single Speed Electric Chain Hoist
Heavy-duty 3 phase electric hoist with single speed lifting. 250kg to 5 tonne.
KITO ER / KEH-1142
250kg to 5 metric tonne capacity, three phase (220/440/575V).
The ER Series Electric Chain Hoist can improve efficiency in the most demanding of work environments.
Packed with the latest technology, the high quality, high performance ER Series Electric
The Kito ER hoist will satisfy even the most demanding of customers.
Low Headroom
-
Lower Headroom than previous ES model
Heavy Duty, Industrial Application
- The outer fan-cooling motor is part of the standard model
- World Class hoist Duty rating
State of the Art Design
- Simplified construction in a single-piece moulded Die-cast body
- Kito load chain is case-hardened, to offer increased resistance to wear and inhibits rust
Options
- Kito's original mechanical brake combined with a friction clutch
- Upper/lower limit switch
- Emergency Stop
- Counter/ Hour meter
- Thermal Protector
High Safety and Operability
- World Class friction clutch with high abrasion resistance and reliability
- Chain will not kink or twist. Bottom hook can not be capsized
Abundant Lifting Speed
-
Provide low, medium, moderate, standard and high lifting speed for varied applications
Standard Specification:
- Standard HOL is 3m
- Standard Control length is 2.5m
- Standard length of power supply cable is 5m.
- Optional Chain containers are available in Plastic, Canvas, or Steel
Single Speed Hoist Model Specifications
W.L.L. (t) | Code | Body Size | Standard Lift (m) | Push Button Cord Length (m) | Lifting Motor 3 Phase | Lifting Speed (m/min) | Load Chain Diameter (mm)x Chain Fall Lines | Classification | Test Load (t) | Net Weight (kg) | Weight for additional one meter of lift (kg) | ||||
Out-Put (kW) | Intermittent Rating (%ED) | 50Hz | 60Hz | ISO | ASME | FEM | |||||||||
250kg | ER003S | ER-B | 3 | 2.5 | 0.56 | 60 | 9.7 | 11.6 | 5.0x1 | M5 | H4 | 2m | 313kg | 31 | 0.55 |
250kg | ER003H | ER-C | 3 | 0.9 | 60 | 14.9 | 17.9 | 6.3xx1 | M5 | H4 | 2m | 313kg | 38 | 0.85 | |
500kg | ER005S | ER-C | 3 | 0.9 | 60 | 7.6 | 9.1 | 6.3x1 | M5 | H4 | 2m | 625kg | 38 | 0.85 | |
1 | ER010S | ER-D | 3 | 1.8 | 60 | 7.3 | 8.8 | 8.0x1 | M5 | H4 | 2m | 1.25 | 61 | 1.38 | |
2 | ER020L | ER-D | 3 | 1.8 | 60 | 3.6 | 4.3 | 10.0x1 | M4 | H4 | 1Am | 2.5 | 70 | 2.3 | |
3 | ER030C | ER-D | 3 | 2.8 | 2.8 | 60 | 3.0 | 3.6 | 10.0x2 | M4 | H4 | 1Am | 3.75 | 98 | 4.6 |
5 | ER050L | ER-E | 3 | 3.5 | 60 | 2.9 | 3.5 | 11.2x2 | M4 | H4 | 1Am | 6.25 | 139 | 5.9 |
