LS Series / SLAT-4057

"LS Series" Linear Actuators, 450lbs to 675lbs

LS Series Linear Actuator LS 25 26 and 28 Linear Actuators Dimensions LS 35 AC Linear Actuator Dimensions LS 35 DC Linear Actuator Dimensions

LS Series Linear Actuators

These have loading types able to give tension (pull) or compression (push) a rated load.

The AC Motor comes with thermal protection to prevent overheating.

  • Internal Limit Switches.
  • On board capacitor for AC models.
  • Die cast aluminium housing for strength.
  • Steel translating tube and outer tube.
  • Self locking ACME screw to prevent back driving.
  • CE compliant and UL recognized.
  • Custom models available.

LS 25, 26 & 28 Linear Actuators

LS 25 26 and 28 Linear Actuators Dimensions

LS 35 AC Linear Actuator

LS 35 AC Linear Actuator Dimensions

LS 35 DC Linear Actuator

LS 35 DC Linear Actuator Dimensions

LS Series Actuator Specifcations

Part Number Rated Load Stroke Retracted Length Voltage Current Draw at Rated Load (A) Speed Duty Cycle % Shipping Weight
lbs N in mm in mm in/s mm/s lbs N
LS25-1B5TN-04 450 2,000 4 101 11.4 290 115 Vac 1.4 0.26 6.6 17 9.1 40.4
LS25-1B5TN-08 8 203 15.4 391 9.8 9.8
LS25-1B5TN-12 12 304 19.4 493 10.6 10.6
LS26-1B5TN-04 560 2,491 4 101 11.4 290 115 Vac 1.4 0.21 5.3 17 9.1 9.1
LS26-1B5TN-08 8 203 15.4 391 9.8 9.8
LS26-1B5TN-12 12 304 19.4 493 10.6 10.6
LS28-1B5TN-04 675 3,002 4 101 11.4 290 115 Vac 1.4 0.15 3.8 17 9.1 9.1
LS28-1B5TN-08 8 203 15.4 391 9.8 9.8
LS28-1B5TN-12 12 304 19.4 493 10.6 10.6
LS35-3B4TN-12 675 3,002 12 304 19.4 493 12Vdc 10 0.21 5.3 17 8.6 8.6
LS35-3B4TN-24 24 609 31.4 797 12Vdc 10 0.21 5.3 10.8 10.8
LS35-1B4TN-12 12 304 19.4 493 115Vac 1.6 0.26 6.6 10.6 10.6
LS35-1B4TN-24 24 609 31.4 797 115Vac 1.6 0.26 6.6 12.8 12.8
LS48-S001 660 2,935 24 609 38.8 984 115Vac 1.4 0.15 3.8 17 21.6 21.6
Part N° Rated Load (lbs) Rated Load (N) Stroke (inch) Stroke (mm) Retracted Length (inch) Retracted Length (mm) Voltage Current Draw at Rated Load (A) Speed (in/s) Speed (mm/s) Unit Price Quantity
4057-T21876
LS25-1B5TN-04 		450 2,000 4 101 11.4 290 115 vAC 1.4 0.26 6.6 Quote Required
4057-T21877
LS25-1B5TN-08 		450 2,000 8 203 15.4 391 115 vAC 1.4 0.26 6.6 Quote Required
4057-T21878
LS25-1B5TN-12 		450 2,000 12 304 19.4 493 115 vAC 1.4 0.26 6.6 Quote Required
4057-T21879
LS26-1B5TN-04 		560 2,491 4 101 11.4 290 115 vAC 1.4 0.21 5.3 Quote Required
4057-T21880
LS26-1B5TN-08 		560 2,491 8 203 15.4 391 115 vAC 1.4 0.21 5.3 Quote Required
4057-T21881
LS26-1B5TN-12 		560 2,491 12 304 19.4 493 115 vAC 1.4 0.21 5.3 Quote Required
4057-T21882
LS28-1B5TN-04 		675 3,002 4 101 11.4 290 115 vAC 1.4 0.15 3.8 Quote Required
4057-T21883
LS28-1B5TN-08 		675 3,002 8 203 15.4 391 115 vAC 1.4 0.15 3.8 Quote Required
4057-T21884
LS28-1B5TN-12 		675 3,002 12 304 19.4 493 115 vAC 1.4 0.15 3.8 Quote Required
4057-T21885
LS35-3B4TN-12 		675 3,002 12 304 19.4 493 12 vDC 10 0.21 5.3 Quote Required
4057-T21886
LS35-3B4TN-24 		675 3,002 24 609 31.4 797 12 vDC 10 0.21 5.3 Quote Required
4057-T21887
LS35-1B4TN-12 		675 3,002 12 304 19.4 493 115 vAC 1.6 0.26 6.6 Quote Required
4057-T21888
LS35-1B4TN-24 		675 3,002 24 609 31.4 797 115 vAC 1.6 0.26 6.6 Quote Required
4057-T21889
LS48-S001 		660 2,935 24 609 38.8 984 115 vAC 1.4 0.15 3.8 Quote Required

Description

+

LS Series Linear Actuators

These have loading types able to give tension (pull) or compression (push) a rated load.

The AC Motor comes with thermal protection to prevent overheating.

  • Internal Limit Switches.
  • On board capacitor for AC models.
  • Die cast aluminium housing for strength.
  • Steel translating tube and outer tube.
  • Self locking ACME screw to prevent back driving.
  • CE compliant and UL recognized.
  • Custom models available.
Dimensions

+

LS 25, 26 & 28 Linear Actuators

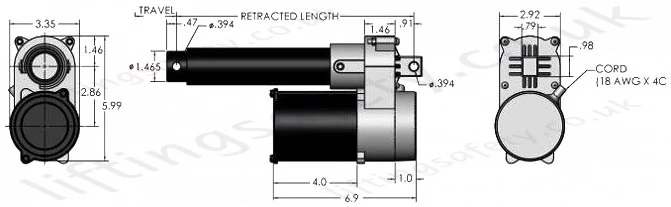

LS 25 26 and 28 Linear Actuators Dimensions

LS 35 AC Linear Actuator

LS 35 AC Linear Actuator Dimensions

LS 35 DC Linear Actuator

LS 35 DC Linear Actuator Dimensions
Specifications

+

LS Series Actuator Specifcations

Part Number Rated Load Stroke Retracted Length Voltage Current Draw at Rated Load (A) Speed Duty Cycle % Shipping Weight
lbs N in mm in mm in/s mm/s lbs N
LS25-1B5TN-04 450 2,000 4 101 11.4 290 115 Vac 1.4 0.26 6.6 17 9.1 40.4
LS25-1B5TN-08 8 203 15.4 391 9.8 9.8
LS25-1B5TN-12 12 304 19.4 493 10.6 10.6
LS26-1B5TN-04 560 2,491 4 101 11.4 290 115 Vac 1.4 0.21 5.3 17 9.1 9.1
LS26-1B5TN-08 8 203 15.4 391 9.8 9.8
LS26-1B5TN-12 12 304 19.4 493 10.6 10.6
LS28-1B5TN-04 675 3,002 4 101 11.4 290 115 Vac 1.4 0.15 3.8 17 9.1 9.1
LS28-1B5TN-08 8 203 15.4 391 9.8 9.8
LS28-1B5TN-12 12 304 19.4 493 10.6 10.6
LS35-3B4TN-12 675 3,002 12 304 19.4 493 12Vdc 10 0.21 5.3 17 8.6 8.6
LS35-3B4TN-24 24 609 31.4 797 12Vdc 10 0.21 5.3 10.8 10.8
LS35-1B4TN-12 12 304 19.4 493 115Vac 1.6 0.26 6.6 10.6 10.6
LS35-1B4TN-24 24 609 31.4 797 115Vac 1.6 0.26 6.6 12.8 12.8
LS48-S001 660 2,935 24 609 38.8 984 115Vac 1.4 0.15 3.8 17 21.6 21.6
