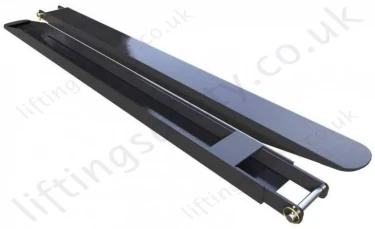

'Open Base' Fork Lift Truck Tine Extensions, Length Range from 1500mm - 2000mm

'Open Base' Fork Lift Truck Tine Extensions, Length Range from 1500mm - 2000mm

Manufactured to conform to ISO 13284 British Standards

Model:

OBFE-618

'Open Base' Fork Lift Truck Tine Extensions, Length Range from 1500mm - 2000mm

Fork Extensions Fork Extension Heavy Duty Capping Fork Extension Hell Pin
  • Manufactured from heavy duty 5mm thick steel for maximum longevity.
  • Additional 8mm thick internal strengthening plates for added durability.
  • Fully rounded, heavy duty, toe section for easy entry into and out of loads or pallets.
  • Removable heel pin offers 'drive in' entry, negating the need for manual handling whilst complying with manual handling regulations.
  • Rear strap offering closed base design for added safety, whilst in keeping with BS EN recommended standards.
  • 'CE' marked.
  • Note: Industry standard state that Fork extension length should not exceed existing fork length by more that 66%.

Ideal for safe and stable handling of loads which are longer than the forklift forks, these fork extensions offer long reach and stabilising capabilities, whilst retaining the manoeuvrability of the lift truck for conventional operating.

Manufactured from heavy duty 5mm thick steel with additional 8mm thick internal strengthening plates, fully rounded toe, with heavy duty capping, for easy entry into and out of loads or pallets.

A removable heel pin allows for drive in entry, negating the need for manual lifting (in compliance with Health & Safety manual lifting regulations), whilst ensuring the fork extensions are safely secured to the truck forks.

For safety reasons, the fork extensions encompass a rear strap 'closed base' design, in keeping with BS EN recommended standards.

Dimensions & Specifications

To Suit Max Fork Size
Width x Thickness (mm)		 Extension Length (mm) Overall Extension Width (mm)
100 x 50 1500 136
100 x 50 1650 136
100 x 50 1800 136
100 x 50 2000 136
125 x 50 1500 163
125 x 50 1650 163
125 x 50 1800 163
125 x 50 2000 163
150 x 60 1800 196
150 x 60 2000 196
Part N° To Suit Max Fork Size (mm) Extension Length (mm) Overall Extension Width (mm) Guide Price Quantity
618-T27218 100 x 50 1500 136 Quote Required
618-T27219 100 x 50 1650 136 Quote Required
618-T27220 100 x 50 1800 136 Quote Required
618-T27221 100 x 50 2000 136 Quote Required
618-T27222 125 x 50 1500 163 Quote Required
618-T27223 125 x 50 1650 163 Quote Required
618-T27224 125 x 50 1800 163 Quote Required
618-T27225 125 x 50 2000 163 Quote Required
618-T27226 150 x 60 1800 196 Quote Required
618-T27227 150 x 60 2000 196 Quote Required

Description

+
  • Manufactured from heavy duty 5mm thick steel for maximum longevity.
  • Additional 8mm thick internal strengthening plates for added durability.
  • Fully rounded, heavy duty, toe section for easy entry into and out of loads or pallets.
  • Removable heel pin offers 'drive in' entry, negating the need for manual handling whilst complying with manual handling regulations.
  • Rear strap offering closed base design for added safety, whilst in keeping with BS EN recommended standards.
  • 'CE' marked.
  • Note: Industry standard state that Fork extension length should not exceed existing fork length by more that 66%.

Ideal for safe and stable handling of loads which are longer than the forklift forks, these fork extensions offer long reach and stabilising capabilities, whilst retaining the manoeuvrability of the lift truck for conventional operating.

Manufactured from heavy duty 5mm thick steel with additional 8mm thick internal strengthening plates, fully rounded toe, with heavy duty capping, for easy entry into and out of loads or pallets.

A removable heel pin allows for drive in entry, negating the need for manual lifting (in compliance with Health & Safety manual lifting regulations), whilst ensuring the fork extensions are safely secured to the truck forks.

For safety reasons, the fork extensions encompass a rear strap 'closed base' design, in keeping with BS EN recommended standards.

Dimensions & Specifications

To Suit Max Fork Size
Width x Thickness (mm)		 Extension Length (mm) Overall Extension Width (mm)
100 x 50 1500 136
100 x 50 1650 136
100 x 50 1800 136
100 x 50 2000 136
125 x 50 1500 163
125 x 50 1650 163
125 x 50 1800 163
125 x 50 2000 163
150 x 60 1800 196
150 x 60 2000 196
