AISI 316L Stainless Steel Screw Pin Dee Shackle, WLL 1000kg to 6300kg

AISI 316L Stainless Steel Screw Pin Dee Shackle, WLL 1000kg to 6300kg

Stainless Steel D-shackle with screw pin.

Model:

SSSP-4485

AISI 316L Stainless Steel Screw Pin Dee Shackle, WLL 1000kg to 6300kg

Stainless Steel Screw Pin Dee Shackle Stainless Steel D Shackle

Load rated stainless steel shackles are predominantly used in areas of high corrosion, such as the water utility / chemical / oil & gas sectors as well as food processing plants.

  • Material: AISI 316L Stainless Steel.
  • Markings: W.L.L. - Size - Batch Number - Material Grade.
  • Test: Batch Tested and Certified.
  • Finish: Polished.

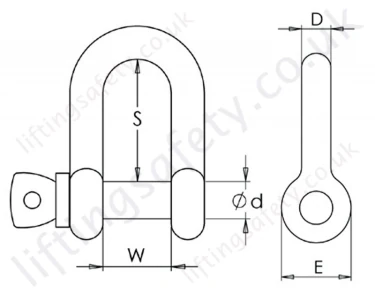

Dimensions and Specifications

W.L.L.(tonne) D (mm) d (mm) W (mm) S (mm) E (mm) Weight each (kg)
1.0 9.5 12 20 42 27 0.16
2.0 16 20 32 65 40 0.68
3.2 19 22 38 77 46 1.03
5.0 22 25 44 88 52 1.54
6.3 25 28 53 105 58 2.26
Dimensions
Part N° WLL (t) Weight (kg) Guide Price Quantity
4485-T23231 1.0 0.25 £  10.45
4485-T23232 2.0 0.75 £  28.09
4485-T23233 3.2 1.12 £  43.18
4485-T23234 5.0 1.67 £  76.01
4485-T23235 6.3 2.60 £  117.52

Description

+

Load rated stainless steel shackles are predominantly used in areas of high corrosion, such as the water utility / chemical / oil & gas sectors as well as food processing plants.

  • Material: AISI 316L Stainless Steel.
  • Markings: W.L.L. - Size - Batch Number - Material Grade.
  • Test: Batch Tested and Certified.
  • Finish: Polished.

Dimensions and Specifications

W.L.L.(tonne) D (mm) d (mm) W (mm) S (mm) E (mm) Weight each (kg)
1.0 9.5 12 20 42 27 0.16
2.0 16 20 32 65 40 0.68
3.2 19 22 38 77 46 1.03
5.0 22 25 44 88 52 1.54
6.3 25 28 53 105 58 2.26
Dimensions
Pricing

+
