Tiger Low Headroom Trolley Hoist with Geared Trolley

Tiger Low Headroom Trolley Hoist with Geared Trolley

Low profile manual hand chain block with built-in chain drive beam trolley.

Model:

LHCG / LHCGY / TLHC-4892

Tiger Low Headroom Trolley Hoist with Geared Trolley

Tiger Lhcg Low Headroom Trolley And Hoist Combination

Very low headroom hand chain hoist and geared travel trolley combination, ideal for locations where headroom is limited.

Fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Product features

  • Range from 1.0t to 10.0t (6t & 10t Available from March 2019).
  • Standard Operating temperature of -30°C to +50°C.
  • Temperature range of -50°C to +50°C available as an option.
  • Standard geared trolley hand chain length: 2.5m.
  • Standard heigh of lift: 3m.
  • Chain carrier collector bag available.
  • Available with load limiter, beam locking device, or Spark Resistant version.

Dimensions and Specifications

Tiger Low Head Room Hoist And Trolley
1.0 - 3.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley

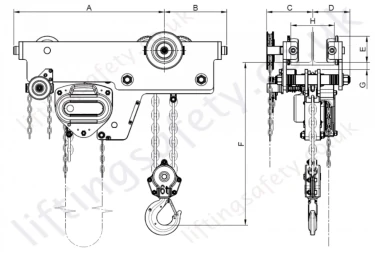

Tiger Low Head Room Hoist And Trolley With Locking Device
1.0 - 3.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley with Locking Device
6 Ton Tiger Low Head Room Hoist And Trolley
6.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley
6 Ton Tiger Low Head Room Hoist And Trolley With Locking Device
6.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley with Locking Device

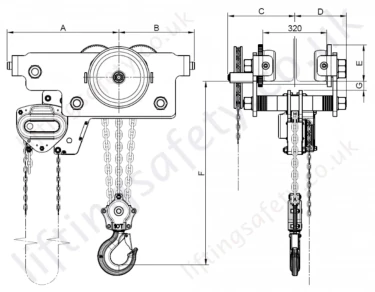

10 Ton Tiger Low Head Room Hoist And Trolley
10.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley
10 Ton Tiger Low Head Room Hoist And Trolley With Locking Device
10.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley with Locking Device
 Capacity (tonne)  Locking Device A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm)
1.0 No 294 154 192 135 70.5 210 24 62-180
1.0 Yes 440 154 192 135 70.5 210 24 62-180
2.0 No 376 186 194 145 79.5 260 24 88-180
2.0 Yes 532 186 194 145 79.5 260 24 88-180
3.0 No 450 230 197 155 96.5 305 32 88-180
3.0 Yes 627 230 197 155 96.5 305 32 88-180
6.0 No 495 280 205 167 117 425 32 106-194
6.0 Yes 672 280 205 167 117 425 32 106-194
10.0 No 560 380 335 258 182 550 45 150-320
10.0 Yes 750 380 335 258 182 550 45 150-320

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice.

Pricing

@ £25.35 (min:3) (3 included in price)
Unit Price

£1620.70
Add to Quote Request
Description

+

Very low headroom hand chain hoist and geared travel trolley combination, ideal for locations where headroom is limited.

Fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Product features

  • Range from 1.0t to 10.0t (6t & 10t Available from March 2019).
  • Standard Operating temperature of -30°C to +50°C.
  • Temperature range of -50°C to +50°C available as an option.
  • Standard geared trolley hand chain length: 2.5m.
  • Standard heigh of lift: 3m.
  • Chain carrier collector bag available.
  • Available with load limiter, beam locking device, or Spark Resistant version.

Dimensions and Specifications

Tiger Low Head Room Hoist And Trolley
1.0 - 3.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley
Tiger Low Head Room Hoist And Trolley With Locking Device
1.0 - 3.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley with Locking Device
6 Ton Tiger Low Head Room Hoist And Trolley
6.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley
6 Ton Tiger Low Head Room Hoist And Trolley With Locking Device
6.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley with Locking Device
10 Ton Tiger Low Head Room Hoist And Trolley
10.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley
10 Ton Tiger Low Head Room Hoist And Trolley With Locking Device
10.0 Tonne Tiger Low Headroom Combination Chain Block & Trolley with Locking Device
 Capacity (tonne)  Locking Device A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm)
1.0 No 294 154 192 135 70.5 210 24 62-180
1.0 Yes 440 154 192 135 70.5 210 24 62-180
2.0 No 376 186 194 145 79.5 260 24 88-180
2.0 Yes 532 186 194 145 79.5 260 24 88-180
3.0 No 450 230 197 155 96.5 305 32 88-180
3.0 Yes 627 230 197 155 96.5 305 32 88-180
6.0 No 495 280 205 167 117 425 32 106-194
6.0 Yes 672 280 205 167 117 425 32 106-194
10.0 No 560 380 335 258 182 550 45 150-320
10.0 Yes 750 380 335 258 182 550 45 150-320

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice.
