Tiger 'Spark Resistant Beam Clamp With Shackle - 1000kg to 30 tonne

Tiger 'Spark Resistant Beam Clamp With Shackle - 1000kg to 30 tonne

ATEX Wide adjustment range beam clamp with shackle suspension point. Up to 90° side loading with no de-ration.

Model:

XBF / TRBC-4923

Tiger 'Spark Resistant Beam Clamp With Shackle - 1000kg to 30 tonne

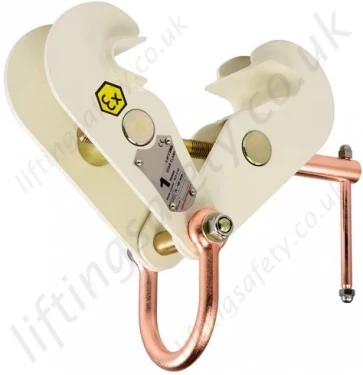

Spark Resistant Beam Clamp

In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones.

Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 94/9/EC and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record.

  • Manufactured in accordance with ATEX Directive 94/9/EC and Machinery Directive 2006/42/EC.
  • Category II – high safety - Certification: Ex II 2 GD c IIC T4 IIIC T135°C.
  • Copper plated suspension shackle and adjusting bar.
  • Special corrosion protected body.
  • Beam locking device.
  • Suitable for pulling and lifting at angles across the beam.
  • Quick and versatile rigging point for hoisting equipment.
  • Evenly distributed loads achieved through maximum jaw surface area.
  • Shackle suspension point.
  • Up to 90° side loading and 15° cross loading with no deration.
  • Multidirectional adjusting screw spindle ensures a high clamping force to the various flange sizes within its capacity.

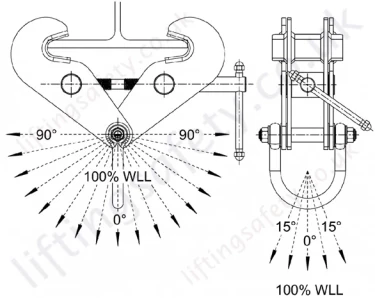

Girder Clamp Loading Angles

Up to 90° side loading and 15° cross loading with no deration

Part N° Capacity (tonne) Beam Width Range (mm) Unit Price Quantity
4923-T24783
XBF-0100 		1.0 75-195 £ 170.35
4923-T24784
XBF-0200 		2.0 75-195 £ 190.75
4923-T24785
XBF-030S 		3.0 75-195 £ 264.60
4923-T24786
XBF-0300 		3.0 100-350 £ 314.75
4923-T24787
XBF-050S 		5.0 75-190 £ 352.80
4923-T25261
XBF-0500 		5.0 100-310 £ 415.45
4923-T25262
XBF-1000 		10.0 120-350 £ 727.65
4923-T25263
XBF-2000 		20.0 203-457 £ 2910.60
4923-T25264
XBF-3000 		30.0 203-457 £ 3704.40

Description

+

In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones.

Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 94/9/EC and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record.

  • Manufactured in accordance with ATEX Directive 94/9/EC and Machinery Directive 2006/42/EC.
  • Category II – high safety - Certification: Ex II 2 GD c IIC T4 IIIC T135°C.
  • Copper plated suspension shackle and adjusting bar.
  • Special corrosion protected body.
  • Beam locking device.
  • Suitable for pulling and lifting at angles across the beam.
  • Quick and versatile rigging point for hoisting equipment.
  • Evenly distributed loads achieved through maximum jaw surface area.
  • Shackle suspension point.
  • Up to 90° side loading and 15° cross loading with no deration.
  • Multidirectional adjusting screw spindle ensures a high clamping force to the various flange sizes within its capacity.

Girder Clamp Loading Angles

Up to 90° side loading and 15° cross loading with no deration
