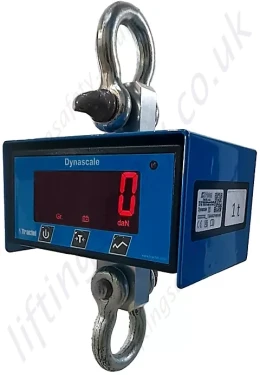

Tractel Dynascale Digital Crane Scale

The Dynascale is a versatile and robust digital crane scale used for various weighing tasks on a crane.

Based on the principle of strain gauge extension measurement, the sensor generates an electrical signal which is processed and analysed by a built-in microprocessor, which transmits the information to the integrated display, the Dynascale ensures a perfect implementation in your applications.

Applications

• Overhead Weighing
• Force measurement testing
• Safety and lifting applications

Functionalities & Features

The Dynascale is a complete autonomous digital crane scale with integrated functions:

• 0.5 % Accuracy of full scale
• Large, clear LCD with 30mm height red digits.
• Supplied with two shackles as standard, or with an optional hook.
• Up to 50 hours of battery life
• Supplied with a handheld remote (wireless)
• Tare
• Peak hold
• Units change (kg, daN, lbs)
• Automatic zeroing
• Automatic stop without load or variation (20 min). Removal of the automatic stop is available as an option
• Infrared remote control (Off, Tare, Peak hold, Units change)
• IP54 Rated protection against water and dust
• Machinery Standard: 2006/42/CE
• EMC Standard: EN 61326-1 (2013) / IEC 61311 (2007)
• Designed and manufactured in France

Dimensions & Specifications

Model	Unit	Dynascale 1t	Dynascale 3.2t	Dynascale 6.5t	Dynascale 12.5t	Remote control
Maximum capacity WLL	t	1	3.2	6.5	12.5
Safety coefficient		Minimum 4
Minimum load		10% of WLL
Precision	± %	0.5% at 21°C full scale
	± kg	5	16	32.5	62.5
Resolution	kg	1	2	5	10
Sample rate	Hz	3 Hz – 32 Hz in “Peak Hold Mode”
Maximum display	%	110% of WLL
Digits height	mm	30
Units		kg / daN / lbs
Conversion factor		1kg = 0.98083 daN = 2.20462 lbs
Battery life	h	50
Net weight	kg	2.2	2.2	3	3.8	0.03
Weight including shackles	Kg	3.5	3.5	6.3	15.8
IP Protection		IP 54				IP54
Working temperature	°C	-20°C to +50°C
Body material		Aluminium and steel				Plastic
Type of battery		2x C				1 x CR2025

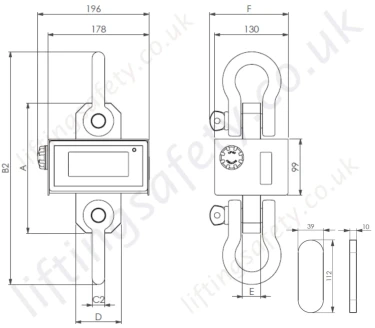

Dimensions
A	mm	189.6	189.6	228.7	277.2
B2	mm	317	317	409	567.5
C2	mm	16.5	16.5	22	34.5
D	mm	43	43	80	80
E	mm	23	23	32	51
F	mm	111.5	111.5	138	193.5
