Riley Superclamp Adjustable Height Double Ended Monorail Construction Clamp - 3000kg or 4000kg

Riley Superclamp Adjustable Height Double Ended Monorail Construction Clamp - 3000kg or 4000kg

Incorporating Height Adjustment Mechanism.

Model:

Riley Superclamps S / AD-3357

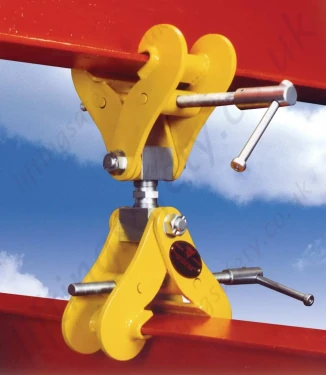

Riley Superclamp Adjustable Height Double Ended Monorail Construction Clamp - 3000kg or 4000kg

Adjustable Height Double Ended Monorail Construction Clamps Adjustable Height Double Ended Monorail Construction Clamp Dimensions

Monorail construction clamps incorporating a height adjusting mechanism are speedily applied to existing steel girders, so as to expedite erection of a conveying system.

They are provided with the facility to adjust the conveying girder in height where required. Their width and height adjusting capabilities make these versatile units an inexpensive, safe, and time saving proposition for the construction of a reliable permanent or temporary overhead conveying system.

Dimensions & Specifications

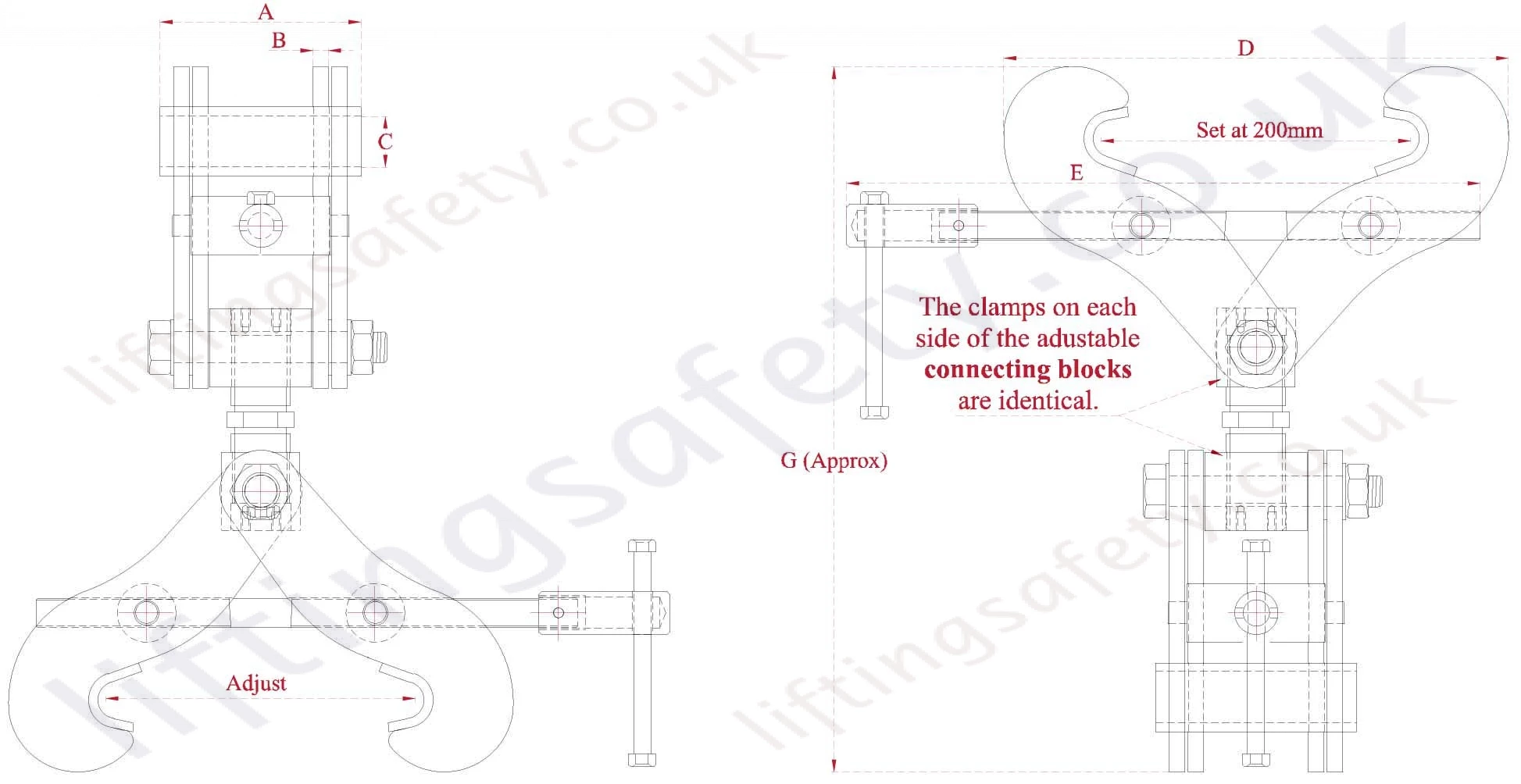

Adjustable Height Double Ended Monorail Construction Clamp Dimensions

Part No: Capacity (kg) Adjust (mm) Dimensions (mm) Weight (kg)
A B C D E G
20970 3048 76 -190 120 6 22 188 275 366 10.5
20971 4064 150 - 254 130 10 22 327 410 457 20.0
Part N° Capacity (kg) Adjust (mm) Unit Price Quantity
3357-T20970 3048 76 - 190 £ 465.00
3357-T20971 4064 150 - 254 £ 691.00

Description

+

Monorail construction clamps incorporating a height adjusting mechanism are speedily applied to existing steel girders, so as to expedite erection of a conveying system.

They are provided with the facility to adjust the conveying girder in height where required. Their width and height adjusting capabilities make these versatile units an inexpensive, safe, and time saving proposition for the construction of a reliable permanent or temporary overhead conveying system.

Dimensions & Specifications

Adjustable Height Double Ended Monorail Construction Clamp Dimensions

Part No: Capacity (kg) Adjust (mm) Dimensions (mm) Weight (kg)
A B C D E G
20970 3048 76 -190 120 6 22 188 275 366 10.5
20971 4064 150 - 254 130 10 22 327 410 457 20.0
