Fork Mounted 110 Litre Steel Drum Rotator for Dispensing Liquid with Control. Rotation by Loop Chain or Crank Handle - 200kg Capacity

Fork Mounted 110 Litre Steel Drum Rotator for Dispensing Liquid with Control. Rotation by Loop Chain or Crank Handle - 200kg Capacity

Drum rotator with a choice of operation types (loop chain/crank handle).

Model:

DR-570

Fork Mounted 110 Litre Steel Drum Rotator for Dispensing Liquid with Control. Rotation by Loop Chain or Crank Handle - 200kg Capacity

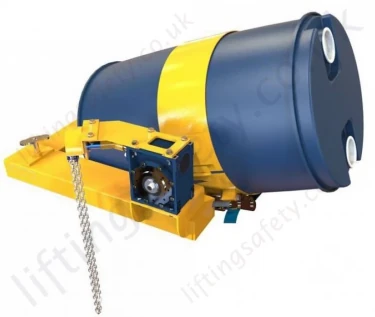

Fork Truck 110 Litre Hand Chain Drum Rotator Fork Truck 110 Litre Crank Handle Drum Rotator

Designed for controlled manual rotation of 110 litre steel drums, this Fork Lift Truck (FLT) attachment slides simply on to the FLT forks.

The gear box for the Crank Handle Operation, or the Hand Chain on the Loop Chain Operation enables controlled pouring from the drum or full 360 degree rotation if needed. The drum is fixed in place with a clamp that is secured using a short ratchet lashing mechanism.

  • Full rotation of 360 degree and precision controlled pouring.
  • Drum fixes to the attachment by a single webbing harness and ratchet.
  • Designed for manually controlled rotation of 110 litre steel drums,
  • Slides simply onto the forks of the truck.
  • IMPORTANT! - Image (with plastic drums) are for illustration purposes only.

Drum Rotator Specifications

Rotation Method Max. SWL (kg) Max. Fork Size (mm) Max. Width Req. Between Forks (mm) Drum Type C of G Weight (kg)
Crank Handle 200 140 x 50 465 110L Steel 310 84
Loop Chain 200 140 x 50 465 110L Steel 310 90
Part N° Max SWL Max Fork Size (mm) Method of Operation Drum Type Weight (kg) Guide Price Quantity
570-T12191 200kg 140 x 50 Crank Handle 110 Litre Steel 84 Quote Required
570-T12192 200kg 140 x 50 Loop Chain 110 Litre Steel 90 Quote Required

Description

+

Designed for controlled manual rotation of 110 litre steel drums, this Fork Lift Truck (FLT) attachment slides simply on to the FLT forks.

The gear box for the Crank Handle Operation, or the Hand Chain on the Loop Chain Operation enables controlled pouring from the drum or full 360 degree rotation if needed. The drum is fixed in place with a clamp that is secured using a short ratchet lashing mechanism.

  • Full rotation of 360 degree and precision controlled pouring.
  • Drum fixes to the attachment by a single webbing harness and ratchet.
  • Designed for manually controlled rotation of 110 litre steel drums,
  • Slides simply onto the forks of the truck.
  • IMPORTANT! - Image (with plastic drums) are for illustration purposes only.

Drum Rotator Specifications

Rotation Method Max. SWL (kg) Max. Fork Size (mm) Max. Width Req. Between Forks (mm) Drum Type C of G Weight (kg)
Crank Handle 200 140 x 50 465 110L Steel 310 84
Loop Chain 200 140 x 50 465 110L Steel 310 90
