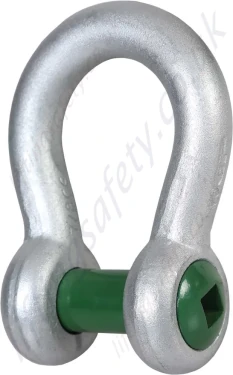

Green Pin G-4169 Square Sunken Hole Bow Shackle, Range from 2 tonne to 17 tonne

• Bow and pin high tensile steel.
• Grade 6, quenched and tempered.
• MBL equals 6 x WLL.
• EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Grade A.
• Hot dipped galvanised.
• Key for unscrewing the pin must be ordered separately.
• Following certificates available upon request: 2.1, 2.2, 3.1, MTCa, CE.

Dimensions and Specifications

W.L.L (tonnes)	a (mm)	b (mm)	c (mm)	d (mm)	e (mm)	f (mm)	g (mm)	h (mm)	i (mm)	j (mm)	k (mm)	Weight (kg)
2	13.5	16	34	13	22	51	32	89	51	58	11	0.31
3.25	16	19	40	16	27	64	43	110	63	75	11	0.56
4.75	19	22	46	19	31	76	51	129	74	89	11	0.98
6.5	22	25	52	22	36	83	58	144	85	102	13	1.46
8.5	25	28	59	25	43	95	68	164	99	118	13	2.18
9.5	28	32	66	28	47	108	75	185	110	131	17	3.06
12	32	35	72	32	51	115	83	201	122	147	17	4.24
13.5	35	38	80	35	57	133	92	227	135	162	17	5.59
17	38	42	88	38	60	146	99	249	145	175	17	7.37
