Hadef "14/12" Spur Gear Chain Hoist

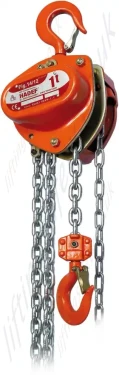

Hadef "14/12" Spur Gear Chain Hoist

Premium line manual hand chain hoist with removeable bolt for ease of installation and lifetime brake lining with guarantee. 500kg to 10 tonne.

Model:

14/12 / HPSG-4348

Hadef "14/12" Spur Gear Chain Hoist

Hadef 14/12 Premium Spur Gear Hoist Top Hook Block Bolt

14/12 Hoist Features

  • Reinforced safety catch of suspension and load hook
  • Hoist protection by slipping-clutch
  • Removable bolt at the top suspension hook block for easy installation
  • Low maintenance and long product lifetime due to sintered brake linings with lifetime guarantee for the brake mechanism*
  • Zinc plated load and hand chain
  • High quality surface treatment of the unpainted parts
  • Rigid construction and steel housing
  • EX(Atex)-version on request
  • Special paint on request

*Should the sintered brake linings be worn, please return the ratchet wheel to Hadef and free of charge a new ratchet wheel with sintered brake lining will be returned. Costs for installation of the new parts will not be refunded.

Specifications

Capacity (kg) Chain Falls Load Chain (mm) Hand Chain (mm) Lift @30m Hand Chain (mm) Hand Chain Pull (daN) Weight (kg)
@ 3m Suspension Height Additional per m
500 1 5 x 15 4.8 x 22 1112 23 7.5 1.5
1000 1 6.3 x 19.1 5 x 25 690 28 13 1.8
1500 1 7.1 x 21 519 34 16 2.1
2000 1 8 x 24 423 35 23 2.3
3000 2 7.1 x 21 260 35 24 3.2
5000 2 9 x 27 151 33 41 4.4
7500 3 9 x 27 101 34 57 6.2
10,000 4 9 x 27 76 35 66 7.9

Dimensions

Capacity (kg) Dimensions in mm
A B D M M1 M3 H
500 115 131 45 27 32 25 285
1000 128 165 52 33 40 30 315
1500 146 170 65 35 42 32 380
2000 164 184 65 37 44 33 404
3000 178 170 110 42 52 89 524
5000 228 192 133 50 60 66 687
7500 290 192 143 60 85 72 825
10,000 315 192 263 64 85 98 820
Hadef 14 12 Premium Spur Gear Hoist Dimensions

Pricing

(min:3) (3 included in price)
Unit Price

£

Request Quote
Add to Quote Request
Description

+

14/12 Hoist Features

  • Reinforced safety catch of suspension and load hook
  • Hoist protection by slipping-clutch
  • Removable bolt at the top suspension hook block for easy installation
  • Low maintenance and long product lifetime due to sintered brake linings with lifetime guarantee for the brake mechanism*
  • Zinc plated load and hand chain
  • High quality surface treatment of the unpainted parts
  • Rigid construction and steel housing
  • EX(Atex)-version on request
  • Special paint on request

*Should the sintered brake linings be worn, please return the ratchet wheel to Hadef and free of charge a new ratchet wheel with sintered brake lining will be returned. Costs for installation of the new parts will not be refunded.

Specifications

Capacity (kg) Chain Falls Load Chain (mm) Hand Chain (mm) Lift @30m Hand Chain (mm) Hand Chain Pull (daN) Weight (kg)
@ 3m Suspension Height Additional per m
500 1 5 x 15 4.8 x 22 1112 23 7.5 1.5
1000 1 6.3 x 19.1 5 x 25 690 28 13 1.8
1500 1 7.1 x 21 519 34 16 2.1
2000 1 8 x 24 423 35 23 2.3
3000 2 7.1 x 21 260 35 24 3.2
5000 2 9 x 27 151 33 41 4.4
7500 3 9 x 27 101 34 57 6.2
10,000 4 9 x 27 76 35 66 7.9

Dimensions

Capacity (kg) Dimensions in mm
A B D M M1 M3 H
500 115 131 45 27 32 25 285
1000 128 165 52 33 40 30 315
1500 146 170 65 35 42 32 380
2000 164 184 65 37 44 33 404
3000 178 170 110 42 52 89 524
5000 228 192 133 50 60 66 687
7500 290 192 143 60 85 72 825
10,000 315 192 263 64 85 98 820
Hadef 14 12 Premium Spur Gear Hoist Dimensions
