Carriage Mounted Fixed Length High Lift Jib Attachment. Hook Position Adjustable

Carriage Mounted Fixed Length High Lift Jib Attachment. Hook Position Adjustable

High lift jib arm attachment that mounts directly to the fork lift truck, in place of the fork tine carriage.

Model:

HLJ-612

Carriage Mounted Fixed Length High Lift Jib Attachment. Hook Position Adjustable

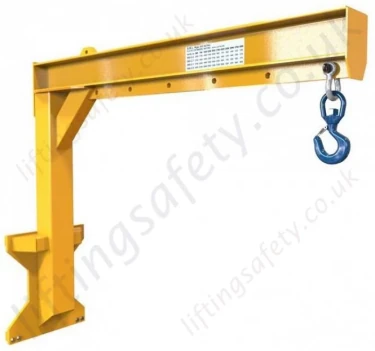

Flt Carriage Mount Fixed Reach Jib Fork Lift Truck Carriage Mounted Jib Arm

Offering an increased lift height, this High Lift forklift jib, also referred to as a Swan Neck jib, is ideally suited for stacking or un-stacking products, allowing for better space utilisation. This jib has a wide backplate to eliminate any sideway movement.

  • Fixed beam length of 1800mm.
  • Mounts directly onto truck carriage so forklift can be positioned closer to the load.
  • Increased lift height for ability to stack and de-stack to greater height, offering better space utilisation.
  • Jib rated to suit the capacity of the lift truck, reducing wear and tear on the lift truck and possibility of overloading.
  • Multiple hook positions for flexible load handling whilst reducing handling costs.
  • Long jib arm to reach otherwise inaccessible places (i.e. machinery motors).
  • Wide carriage back plate to reduce sideways movement thus reducing damage from load swinging excessively.
  • 'CE' marked.

Jib Load Chart

Model Truck Capacity at 500mm (kg) (not jib capacity) Load Centre Capacity at 500mm (kg) Load Centre Capacity at 750mm (kg) Load Centre Capacity at 1000mm (kg) Load Centre Capacity at 1250mm (kg) Load Centre Capacity at 1500mm (kg) Load Centre Capacity at 1750mm (kg)
612-12373 1500 1300 900 680 500 450 380
612-12374 2000 1800 1400 1100 900 720 580
612-12375 2500 2200 1800 1400 1100 1000 850
612-12376 3000 2700 2050 1450 1200 1100 900
612-12377 3500 3100 2500 1900 1500 1200 1000
612-12378 4000 3500 2700 2000 1600 1300 1100
612-12379 5000 4400 3400 2700 2200 1850 1400



Part N° Truck Capacity (not jib capacity - refer to load chart) Carriage Class Height from Underside of carriage to Hook (mm) Centre of Gravity Weight (kg) Guide Price Quantity
612-T12373 1500kg 2 982 450 162 Quote Required
612-T12374 2000kg 2 945 450 163 Quote Required
612-T12375 2500kg 2 932 450 164 Quote Required
612-T12376 3000kg 3 922 435 212 Quote Required
612-T12377 3500kg 3 922 435 213 Quote Required
612-T12378 4000kg 3 922 435 215 Quote Required
612-T12379 5000kg 3 898 435 220 Quote Required

Description

+

Offering an increased lift height, this High Lift forklift jib, also referred to as a Swan Neck jib, is ideally suited for stacking or un-stacking products, allowing for better space utilisation. This jib has a wide backplate to eliminate any sideway movement.

  • Fixed beam length of 1800mm.
  • Mounts directly onto truck carriage so forklift can be positioned closer to the load.
  • Increased lift height for ability to stack and de-stack to greater height, offering better space utilisation.
  • Jib rated to suit the capacity of the lift truck, reducing wear and tear on the lift truck and possibility of overloading.
  • Multiple hook positions for flexible load handling whilst reducing handling costs.
  • Long jib arm to reach otherwise inaccessible places (i.e. machinery motors).
  • Wide carriage back plate to reduce sideways movement thus reducing damage from load swinging excessively.
  • 'CE' marked.

Jib Load Chart

Model Truck Capacity at 500mm (kg) (not jib capacity) Load Centre Capacity at 500mm (kg) Load Centre Capacity at 750mm (kg) Load Centre Capacity at 1000mm (kg) Load Centre Capacity at 1250mm (kg) Load Centre Capacity at 1500mm (kg) Load Centre Capacity at 1750mm (kg)
612-12373 1500 1300 900 680 500 450 380
612-12374 2000 1800 1400 1100 900 720 580
612-12375 2500 2200 1800 1400 1100 1000 850
612-12376 3000 2700 2050 1450 1200 1100 900
612-12377 3500 3100 2500 1900 1500 1200 1000
612-12378 4000 3500 2700 2000 1600 1300 1100
612-12379 5000 4400 3400 2700 2200 1850 1400
