  8. Imperial Thread Collared Eye Bolt to ISO3266/BS4278
Imperial Thread Collared Eye Bolt to ISO3266/BS4278

Imperial Thread Collared Eye Bolt to ISO3266/BS4278

3/8" to 3" imperial threaded (BSW, UNC, BSF or UNF) collar lifting eye bolts. 250kg to 30 tonne.

Model:

ITCE-3267

Manufacturing Standard: ISO3266/BS4278

Imperial Thread Collared Eye Bolt to ISO3266/BS4278

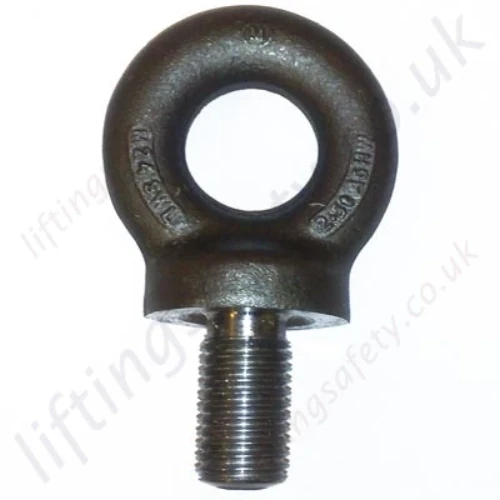

Imperial Thread Collar Eye Bolt Imperial Thread Collared Eyebolt Different Sized Eyebolts Collared Eyebolt In Use Eyebolt Collar And Thread Large Imperial Thread Collared Eyebolt 3 8 Inch Collared Eyebolt 5 8 Inch Imperial Lifting Eye 7 8 Inch Collared Eyebolt Half Inch Imperial Collared Eyebolt 1 Inch Collared Eyebolt
  • Material: as specified by BS 4278 hardened and tempered or ISO3266 (please check before ordering).
  • Safe working loads listed below are shown at 0° (true vertical) angle of lift.
  • Can be supplied in a choice of threads which are: BSW (British Standard Whitworth); UNC; BSF or UNF.
  • During a time of transition, these eyebolts may be dimensionally as BS4278, but to ISO3266. Please check before ordering.

Dimensions & Specifications

Thread Size (in.) SWL (tonne) B (mm) E (mm) F (mm) G (mm) H (mm) Weight Each (kg)
3/8 0.25 22 15 9 20 18 0.08
1/2 0.50 29 20 12 26 23 0.14
5/8 0.90 36 24 14 32 28 0.38
3/4 1.40 45 30 18 40 35 0.60
7/8 2.00 52 35 21 46 40 0.78
1 2.75 58 39 23 52 46 1.67
1-1/8 3.50 65 44 26 58 51 1.78
1-1/4 4.50 72 48 29 64 56 2.24
1-1/2 6.50 81 54 32 72 63 3.17
1-3/4 9.00 101 68 40 90 79 6.00
2 12.00 115 76 46 102 89 9.00
2-1/4 15.00 128 86 51 114 100 15.00
2-1/2 20.00 144 96 58 128 112 18.20
3 30.00 172 114 67 153 133 30.40

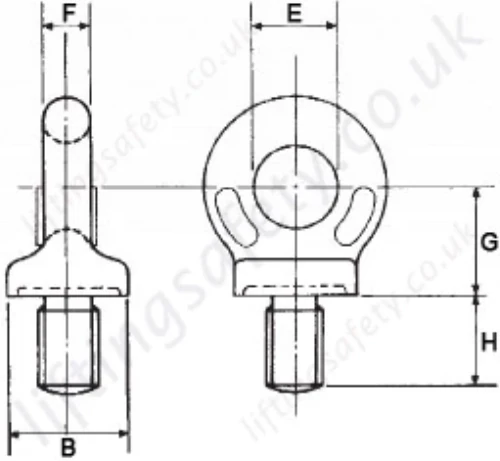

Dimensional Drawing
Part N° Thread Type Thread Dia. (in.) Safe Working Load Weight (kg) Guide Price Quantity
3267-T6245 BSW 3/8 0.25t @ 0° (true vertical lift) 0.08 £  3.04
3267-T6246 BSW 1/2 0.50t @ 0° (true vertical lift) 0.14 £  4.66
3267-T6247 BSW 5/8 0.90t @ 0° (true vertical lift) 0.38 £  7.42
3267-T6248 BSW 3/4 1.40t @ 0° (true vertical lift) 0.60 £  8.48
3267-T6249 BSW 7/8 2.00t @ 0° (true vertical lift) 0.78 £  19.88
3267-T6250 BSW 1 2.75t @ 0° (true vertical lift) 1.67 £  18.42
3267-T6251 BSW 1-1/8 3.50t @ 0° (true vertical lift) 1.78 £  25.74
3267-T6252 BSW 1-1/4 4.50t @ 0° (true vertical lift) 2.24 £  31.12
3267-T6253 BSW 1-1/2 6.50t @ 0° (true vertical lift) 3.17 £  51.40
3267-T6254 BSW 1-3/4 9.00t @ 0° (true vertical lift) 6.00 £  117.54
3267-T6255 BSW 2 12.00t @ 0° (true vertical lift) 9.00 £  151.94
3267-T6256 BSW 2-1/4 15.00t @ 0° (true vertical lift) 15.00 £  280.20
3267-T6257 BSW 2-1/2 20.00t @ 0° (true vertical lift) 18.20 £  371.76
3267-T6258 BSW 3 30.00t @ 0° (true vertical lift) 30.40 £  456.02

Description

+
  • Material: as specified by BS 4278 hardened and tempered or ISO3266 (please check before ordering).
  • Safe working loads listed below are shown at 0° (true vertical) angle of lift.
  • Can be supplied in a choice of threads which are: BSW (British Standard Whitworth); UNC; BSF or UNF.
  • During a time of transition, these eyebolts may be dimensionally as BS4278, but to ISO3266. Please check before ordering.

Dimensions & Specifications

Thread Size (in.) SWL (tonne) B (mm) E (mm) F (mm) G (mm) H (mm) Weight Each (kg)
3/8 0.25 22 15 9 20 18 0.08
1/2 0.50 29 20 12 26 23 0.14
5/8 0.90 36 24 14 32 28 0.38
3/4 1.40 45 30 18 40 35 0.60
7/8 2.00 52 35 21 46 40 0.78
1 2.75 58 39 23 52 46 1.67
1-1/8 3.50 65 44 26 58 51 1.78
1-1/4 4.50 72 48 29 64 56 2.24
1-1/2 6.50 81 54 32 72 63 3.17
1-3/4 9.00 101 68 40 90 79 6.00
2 12.00 115 76 46 102 89 9.00
2-1/4 15.00 128 86 51 114 100 15.00
2-1/2 20.00 144 96 58 128 112 18.20
3 30.00 172 114 67 153 133 30.40
Dimensional Drawing
Pricing

+
