William Hackett Standard Length Metric Thread Swivel Lifting Point

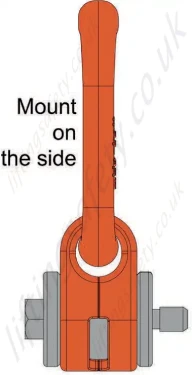

The HA lifting point (metric) is a bolt-on load attachment product designed for use with loads that incorporate tapped holes. It can rotate 360° around the bolt axis, as well as pivot 90°, allowing the lifting point to orientate to the appropriate angle of lift, mitigating the risk of damage. The HA lifting point (metric) is suitable for both top and side mounting and maintains its full working load limit even when pulled at 90°.

Key Features

• WLL Range: 0.3t to 20.0t
• Proof Load Test: 2.5 x WLL
• Safety Factor: 4 : 1
• Temp Range: -40°C to +200°C
• Rotation: 360°
• Pivot: 90°

Additional Features

• Standards: Designed and manufactured in accordance with EN1677-1 and ASME B30.26.
• Product sizes: Available in sizes M8 to M48 and with working load limits from 0.3 tonnes to 20.0 tonnes.
• Product markings: Forged bail marked with manufacturer name “Hackett” and batch number for product material traceability. Body marked with working load limit (based on 4 : 1 safety factor) and batch number. Bolt
  marked with metric size, material grade, working load limit (based on 4:1 safety factor), and batch number for bolt material traceability.
• Temperature: Operational temperature range of - 40°C to + 200°C without reduction in working load limit.
• Material: Alloy steel.
• Testing: Load-rated parts are subject to 100% magnaflux crack detection following heat treatment. HA lifting points are proof tested to 2.5 times the working load limit and fatigue rated to 20,000 cycles at 1.5 times the working load limit.

Specifications

All dimensions are metric in millimetres.

Part Code	WLL (t)	Thread - M	A	B	C	D	E	F	G	H	I	J	K	L	Torque (Nm)	Mass (kg)
8-H17-M08G	0.3	M8	31	43	42	11	98.5	57	13	8	14	37	6	13	25	0.5
8-H17-M10G	0.63	M10	31	41	44	16	98.5	57	13	10	14	37	6	16	30	0.5
8-H17-M12G	1.0	M12	31	40	45	18	98.5	57	13	12	14	37	8	18	35	0.5
8-H17-M16G	1.5	M16	31	37	48	24	98.5	57	13	16	14	37	10	24	80	0.5
8-H17-M20G	2.5	M20	45	68	58	30	143	82	16	20	16.5	54	12	30	150	1.5
8-H17-M24G	4.0	M24	45	65	61	36	143	82	16	24	16.5	54	14	36	260	1.5
8-H17-M30G	5.0	M30	59	66	82	48	170	99	22	30	22	65	17	46	400	3.5
8-H17-M36G	8.0	M36	69	95	104	62	226.5	123	27.5	36	27	85	22	55	550	6.0
8-H17-M42G	15.0	M42	98	104.5	117	63	257.5	158	36	42	36	104	22	65	650	11.0
8-H17-M48G	20.0	M48	98	101.5	120	72	257.5	158	36	48	36	104	27	75	700	12.0
