ForkLift Truck Tine Mounted Manually Adjusted Telescopic "Extender" Jib Attachment - Range From 210kg to 2700kg

ForkLift Truck Tine Mounted Manually Adjusted Telescopic "Extender" Jib Attachment - Range From 210kg to 2700kg

2m to 3m Telescopic Extender Jib with secondary removable hook.

Model:

TEJ-604

ForkLift Truck Tine Mounted Manually Adjusted Telescopic "Extender" Jib Attachment - Range From 210kg to 2700kg

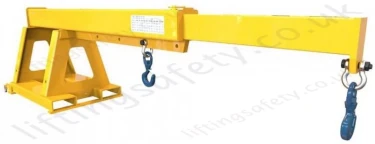

Raised Tine Mounted Long Reach Extender Lifting Jib Tej 604 Forklift Telescopic Jib Tej 604 Forklift Telescopic Jib Extended Tej 604 Forklift Telescopic Jib Retracted

Raised height forklift jib, with manually extendable jib arm, which gives an overall lifting reach of 3000mm. With 11 different lifting point locations it makes this jib ideal for handling extra long loads.

The lifting capacity of the forklift jib is based on the forklift trucks capacity, therefore ensuring the lifting jib can be operated safely within the lifting limits of the forklift truck. The raised beam height position of this forklift and telehandler jib also aids visibility for the forklift truck operator.

With heel pin retention for a safe and secure attachment to the forklift truck, and supplied with two hooks and shackles as standard, our raised extender jib is the ideal choice for extra long load handling, and will be supplied fully tested and certified to comply with the latest Health & Safety Regulations.

  • Extends out to 3000mm (2000mm closed) to allow loads to be picked up from greater distances.
  • Raised hook position for improved visibility whilst keeping hook off the ground when jib is left standing.
  • Multiple hook positions for flexible load handling.
  • Long jib arm to reach otherwise inaccessible places (i.e. machinery motors).
  • Large fork pockets for instant 'drive in' fitting, making jib quick and simple to fit and remove from lift truck.
  • Heel retaining pins to ensure the jib is safely and securely fastened to the lift truck forks.
  • 'CE' marked.

Dimensions and Specifications

Part N° Truck Capacity Hook Height (A) (mm) Closed Length (B) (mm) Open Length (C) (mm) Fork Spread (D) (mm) Max Fork Size (F x E) (mm) Weight (kg) Centre of Gravity min Centre of Gravity max
604-T12367 2000kg 191 2000 3000 496 125 x 50 133 716 899
604-T12368 2500kg 193 2000 3000 496 125 x 50 135 716 899
604-T12369 3000kg 176 2000 3000 546 125 x 50 220 730 915
604-T12370 3500kg 163 2000 3000 546 125 x 50 220 730 915
604-T12371 4000kg 137 2000 3000 546 125 x 50 222 735 920
604-T12372 5000kg 128 2000 3000 546 125 x 50 226 762 952
Dimensional Drawing
Model Ref Truck Capacity Kg @ 500mm Load Centre Capacity @ 1000 mm Load Centre Capacity @ 1250 mm Load Centre Capacity @ 1500 mm Load Centre Capacity @ 1750 mm Load Centre Capacity @ 2000 mm Load Centre Capacity @ 2250 mm Load Centre Capacity @ 2500 mm Load Centre Capacity @ 2750 mm Load Centre Capacity @ 3000 mm
604-12367 2000 1100 900 720 580 500 360 330 260 210
604-12368 2500 1400 1100 1000 850 750 560 440 320 230
604-12369 3000 1450 1200 1100 900 840 670 490 360 270
604-12370 3500 1900 1500 1200 1000 900 730 580 450 370
604-12371 4000 2000 1600 1300 1100 100 820 670 540 460
604-12372 5000 2700 2200 1850 1400 1100 900 750 620 500
Part N° Truck Capacity (not jib capacity - refer to load chart) Hook Height (A) (mm) Closed Length (B) (mm) Open Length (C) (mm) Fork Spread (D) (mm) Max Fork Size (F x E) (mm) Weight (kg) Centre of Gravity min Centre of Gravity max Guide Price Quantity
604-T12367 2000kg 191 2000 3000 496 125 x 50 133 716 899 Quote Required
604-T12368 2500kg 193 2000 3000 496 125 x 50 135 716 899 Quote Required
604-T12369 3000kg 176 2000 3000 546 125 x 50 220 730 915 Quote Required
604-T12370 3500kg 163 2000 3000 546 125 x 50 220 730 915 Quote Required
604-T12371 4000kg 137 2000 3000 546 125 x 50 222 735 920 Quote Required
604-T12372 5000kg 128 2000 3000 546 125 x 50 226 762 952 Quote Required

Description

+

Raised height forklift jib, with manually extendable jib arm, which gives an overall lifting reach of 3000mm. With 11 different lifting point locations it makes this jib ideal for handling extra long loads.

The lifting capacity of the forklift jib is based on the forklift trucks capacity, therefore ensuring the lifting jib can be operated safely within the lifting limits of the forklift truck. The raised beam height position of this forklift and telehandler jib also aids visibility for the forklift truck operator.

With heel pin retention for a safe and secure attachment to the forklift truck, and supplied with two hooks and shackles as standard, our raised extender jib is the ideal choice for extra long load handling, and will be supplied fully tested and certified to comply with the latest Health & Safety Regulations.

  • Extends out to 3000mm (2000mm closed) to allow loads to be picked up from greater distances.
  • Raised hook position for improved visibility whilst keeping hook off the ground when jib is left standing.
  • Multiple hook positions for flexible load handling.
  • Long jib arm to reach otherwise inaccessible places (i.e. machinery motors).
  • Large fork pockets for instant 'drive in' fitting, making jib quick and simple to fit and remove from lift truck.
  • Heel retaining pins to ensure the jib is safely and securely fastened to the lift truck forks.
  • 'CE' marked.

Dimensions and Specifications

Part N° Truck Capacity Hook Height (A) (mm) Closed Length (B) (mm) Open Length (C) (mm) Fork Spread (D) (mm) Max Fork Size (F x E) (mm) Weight (kg) Centre of Gravity min Centre of Gravity max
604-T12367 2000kg 191 2000 3000 496 125 x 50 133 716 899
604-T12368 2500kg 193 2000 3000 496 125 x 50 135 716 899
604-T12369 3000kg 176 2000 3000 546 125 x 50 220 730 915
604-T12370 3500kg 163 2000 3000 546 125 x 50 220 730 915
604-T12371 4000kg 137 2000 3000 546 125 x 50 222 735 920
604-T12372 5000kg 128 2000 3000 546 125 x 50 226 762 952
Dimensional Drawing
Model Ref Truck Capacity Kg @ 500mm Load Centre Capacity @ 1000 mm Load Centre Capacity @ 1250 mm Load Centre Capacity @ 1500 mm Load Centre Capacity @ 1750 mm Load Centre Capacity @ 2000 mm Load Centre Capacity @ 2250 mm Load Centre Capacity @ 2500 mm Load Centre Capacity @ 2750 mm Load Centre Capacity @ 3000 mm
604-12367 2000 1100 900 720 580 500 360 330 260 210
604-12368 2500 1400 1100 1000 850 750 560 440 320 230
604-12369 3000 1450 1200 1100 900 840 670 490 360 270
604-12370 3500 1900 1500 1200 1000 900 730 580 450 370
604-12371 4000 2000 1600 1300 1100 100 820 670 540 460
604-12372 5000 2700 2200 1850 1400 1100 900 750 620 500
Pricing

+
