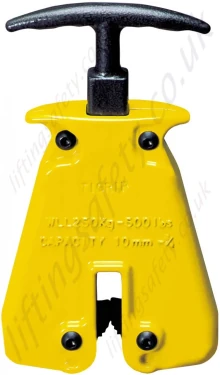

Camlok "HGC" Hand Grip Clamp - 250kg

Camlok "HGC" Hand Grip Clamp - 250kg

Camlok HGC hand clamp for up to 250kg and 10mm thin plates, weighs only 1.4kg

Model:

Camlok HGC / HGC-3034

Camlok "HGC" Hand Grip Clamp - 250kg

Yale HGC Hand Grip Clamp HGC Clamp Opening HGC Transporting

Camlok Hand Grip Clamps, which are designed and manufactured in the UK, are suited to the individual transport of light and thin plates. It has a jaw capacity of up to 10mm, and can lift up to 250kg. The Unit itself weighs only 1.4kg.

To operate the clamp you simply press down on the hand grip which releases the tension spring. This allows the clamp to open and slide onto onto the plate. The plate can then be lifted and transported using the ergonomically designed hand grip. The positive spring pressure prevents the plate from accidentally slipping out of the clamp.

Dimensions & Specifications

Model WLL (kgs) Jaw capacity Weight (kgs)
HGC 250 250 0 - 10 1.4
HGC 250 EX 250 0 - 10 1.5
HGC 250 EB 250 0 - 10 1.4

Optional

  • Extended 300mm handle (EX)
  • Eyebolt instead of handle (EB)

Important: Plate surface of material lifted must not exceed a hardness level of HRC 30 / Brinell 300.

Part N° Working Load Limit (kg) Jaw Capacity (mm) Weight (kgs) Type / Option Unit Price Quantity
3034-T22181
HGC 250 		250 0 - 10 1.4 Standard £ 220.11
3034-T22182
HGC 250 EX 		250 0 - 10 1.5 Extended Handle (300mm) £ 243.97
3034-T22183
HGC 250 EB 		250 0 - 10 1.4 Eye Bolt £ 226.73

Description

+

Camlok Hand Grip Clamps, which are designed and manufactured in the UK, are suited to the individual transport of light and thin plates. It has a jaw capacity of up to 10mm, and can lift up to 250kg. The Unit itself weighs only 1.4kg.

To operate the clamp you simply press down on the hand grip which releases the tension spring. This allows the clamp to open and slide onto onto the plate. The plate can then be lifted and transported using the ergonomically designed hand grip. The positive spring pressure prevents the plate from accidentally slipping out of the clamp.

Dimensions & Specifications

Model WLL (kgs) Jaw capacity Weight (kgs)
HGC 250 250 0 - 10 1.4
HGC 250 EX 250 0 - 10 1.5
HGC 250 EB 250 0 - 10 1.4

Optional

  • Extended 300mm handle (EX)
  • Eyebolt instead of handle (EB)

Important: Plate surface of material lifted must not exceed a hardness level of HRC 30 / Brinell 300.
