  6. Planetary 3Ph 400v Electric Lifting Winch - 360kg or 600kg
Planetary 3Ph 400v Electric Lifting Winch - 360kg or 600kg

Planetary 3Ph 400v Electric Lifting Winch - 360kg or 600kg

AC Electric Pulling & Lifting Winches 415v x 3ph Power Supply.

Model:

PALW-1176

Planetary 3Ph 400v Electric Lifting Winch - 360kg or 600kg

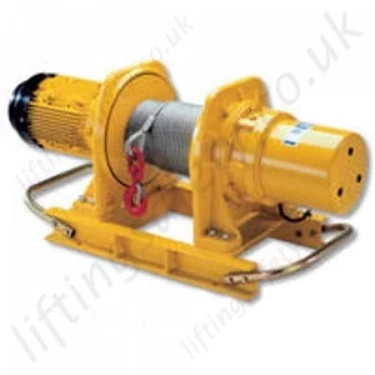

Planetary Electric Lifting Winch

360kg & 600kg SWL

Features Include

  • Electromagnetic spring-applied fail safe brake.
  • Planetary gears for efficiency.
  • Cast steel foot mountings.
  • Fabricated steel drum.
  • Supplied on steel skid frame ready to mount.
  • Motor to IP54 as standard (other options available on request).
  • Heavy duty high efficiency ball bearings on all running surfaces.
  • Enclosed drum flange to prevent rope becoming trapped between drum and support castings.
  • Low Voltage Control with Emergency Stop.

Pulling Load Capacity for Various Inclines in kg

MODEL GRADIENT % incline / angle in degrees
10%/6° 20%/11° 40%/22° 60%/31° 80%/39°
1176-14047 1200 900 600 480 420
1176-14048 1600 1200 800 620 550
1176-14049 2000 1500 1000 775 700

1. All ratings are based on the top layer. For each layer reduction on the drum, pulling capacity is increased by 10%
2. Use a snatch block for double line operation, to increase line pull by approximately 85%.
3. The pulling capacities are based on a free rolling load and 15% has been allowed for friction (specific applications will vary).

Specifications

Model Lifting capacity kg wire rope top layer Lifting speed m/min. approx. Motor rating 415v 3ph Maximum lifting height m Wire rope Ø mm x m Net weight kg including wire rope Drum dimension mm
first layer top layer kw / amp poles drum capacity standard Length Drum Dia Flange Dia
1176-14047 400 23 30 2.2 / 4.5 2 60 9 x 38 120 240 140 280
1176-14048 600 12 15 1.5 / 3.5 4 60 9 x 38 120 240 140 280
1176-14049 600 7.8 10.5 1.5 / 3.5 6 60 9 x 38 120 240 140 280

Note: All machines are supplied with pendant control including emergency stop.
Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%).

Warning
These winches must not be used for the movement of personnel and 5 wraps of wire rope must be maintained on the drum.

AC Winches - Pulling & Lifting - 415V x 3ph AC

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Part N° Model Lifting Capacity (wire rope top layer) Drum Capacity (m) Guide Price Quantity
1176-T14047 CWG-30151A 400kg 60 Quote Required
1176-T14048 CWG-30151B 600kg 60 Quote Required
1176-T14049 CWG-30151C 600kg 60 Quote Required

Description

+

360kg & 600kg SWL

Features Include

  • Electromagnetic spring-applied fail safe brake.
  • Planetary gears for efficiency.
  • Cast steel foot mountings.
  • Fabricated steel drum.
  • Supplied on steel skid frame ready to mount.
  • Motor to IP54 as standard (other options available on request).
  • Heavy duty high efficiency ball bearings on all running surfaces.
  • Enclosed drum flange to prevent rope becoming trapped between drum and support castings.
  • Low Voltage Control with Emergency Stop.

Pulling Load Capacity for Various Inclines in kg

MODEL GRADIENT % incline / angle in degrees
10%/6° 20%/11° 40%/22° 60%/31° 80%/39°
1176-14047 1200 900 600 480 420
1176-14048 1600 1200 800 620 550
1176-14049 2000 1500 1000 775 700

1. All ratings are based on the top layer. For each layer reduction on the drum, pulling capacity is increased by 10%
2. Use a snatch block for double line operation, to increase line pull by approximately 85%.
3. The pulling capacities are based on a free rolling load and 15% has been allowed for friction (specific applications will vary).

Specifications

Model Lifting capacity kg wire rope top layer Lifting speed m/min. approx. Motor rating 415v 3ph Maximum lifting height m Wire rope Ø mm x m Net weight kg including wire rope Drum dimension mm
first layer top layer kw / amp poles drum capacity standard Length Drum Dia Flange Dia
1176-14047 400 23 30 2.2 / 4.5 2 60 9 x 38 120 240 140 280
1176-14048 600 12 15 1.5 / 3.5 4 60 9 x 38 120 240 140 280
1176-14049 600 7.8 10.5 1.5 / 3.5 6 60 9 x 38 120 240 140 280

Note: All machines are supplied with pendant control including emergency stop.
Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%).

Warning
These winches must not be used for the movement of personnel and 5 wraps of wire rope must be maintained on the drum.

AC Winches - Pulling & Lifting - 415V x 3ph AC

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Pricing

+
