Wall Mount 'I' Beam Profile, Under-Braced Swing Jib Crane, Range: 80kg to 1000kg

Wall Mount 'I' Beam Profile, Under-Braced Swing Jib Crane, Range: 80kg to 1000kg

Wall Mounted Slewing Jib Crane with Under Bracing, with various Capacity and Reach options.

Model:

WMSJ-4801

Wall Mount 'I' Beam Profile, Under-Braced Swing Jib Crane, Range: 80kg to 1000kg

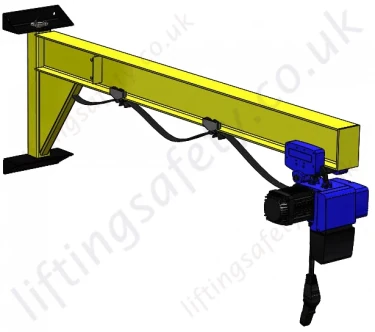

Wall Mount Underbraced I Beam Jib Crane Wall Mount Underbraced I Beam Slewing Jib Arm

Wall mounting jib cranes comprise of an arm and a pair of brackets that can be bolted or welded to an existing wall or building column / stanchion / pillar. The support structure must be tested by a structural engineer to ensure it is strong enough to sustain the weight of the jib when loaded. The arm is then located between the pair of clamping brackets and fixed using a pivot pin. The arm then rotates around the support column and enables lifting within a predetermined arc.

Product Feature

  • UK Manufactured.
  • Free and easy to operate.
  • Finish: Powder coated as Standard, hot dip galvanised or stainless steel options available on request.
  • Designed in accordance with: BS 7333 : 1990.
  • Low maintenance.
  • Braking device to control slewing speed.
  • Lubrication-free acetyl bearings used on majority of jib arms.
  • Quick delivery.

Optional extras

  • Adjustable slewing limits – to reduce the slewing arc.
  • Slewing lock – to fix the arm in a specific location.
  • Kit to enable the pin to be fitted from below.
Under Braced I Beam Wall Mount Jib Crane
  Arm Dimensions    Bracket Dimensions      Loadings and Weights
SWL Radius Flange Width Kingpin Height Under-bracing
Length		 Overall Height Headroom Height Bracket Width Pivot Point Bolt Size Reaction Arm Weight
(kg) R (m) F (mm) B (mm) C (mm) B2 (mm) H2 (mm) W2 (mm) A (mm) Ø R1 (kg) (kg)
80 3 102 500 320 680 305 380 75 M20 1335 82
80 4 102 500 320 680 305 380 75 M20 1932 101
80 5 102 600 400 780 330 380 75 M20 2390 147
80 6 133 600 400 780 330 380 105 M20 3291 189
125 3 102 500 320 680 305 380 75 M20 1672 82
125 4 133 500 400 680 330 380 105 M20 2683 139
125 5 133 600 500 780 330 380 105 M20 3083 174
125 6 102 750 500 930 385 380 105 M20 3170 200
250 3 102 600 400 780 330 380 75 M20 2266 101
250 4 133 600 400 780 380 380 105 M20 3207 129
250 5 102 750 500 930 390 380 105 M20 3617 190
250 6 102 850 550 1030 440 380 105 M20 4284 254
500 3 102 750 500 930 380 380 105 M20 3144 116
500 4 102 750 500 930 435 380 105 M20 4445 163
500 5 127 850 500 1050 485 380 105 M20 5238 220
500 6 140 1000 600 1200 835 380 105 M20 5855 306
1000 3 102 750 450 950 445 380 105 M20 5810 137
1000 4 127 850 500 1050 490 380 105 M20 7204 216
1000 5 140 1000 600 1200 540 380 105 M20 8085 302
1000 6 178 1000 600 1200 545 380 105 M20 10482 432

Mounting brackets are supplied undrilled. To be drilled / welded on site to suit the application.

Pricing

Unit Price

£

Request Quote
Add to Quote Request
Description

+

Wall mounting jib cranes comprise of an arm and a pair of brackets that can be bolted or welded to an existing wall or building column / stanchion / pillar. The support structure must be tested by a structural engineer to ensure it is strong enough to sustain the weight of the jib when loaded. The arm is then located between the pair of clamping brackets and fixed using a pivot pin. The arm then rotates around the support column and enables lifting within a predetermined arc.

Product Feature

  • UK Manufactured.
  • Free and easy to operate.
  • Finish: Powder coated as Standard, hot dip galvanised or stainless steel options available on request.
  • Designed in accordance with: BS 7333 : 1990.
  • Low maintenance.
  • Braking device to control slewing speed.
  • Lubrication-free acetyl bearings used on majority of jib arms.
  • Quick delivery.

Optional extras

  • Adjustable slewing limits – to reduce the slewing arc.
  • Slewing lock – to fix the arm in a specific location.
  • Kit to enable the pin to be fitted from below.
Dimensions

+
Under Braced I Beam Wall Mount Jib Crane
  Arm Dimensions    Bracket Dimensions      Loadings and Weights
SWL Radius Flange Width Kingpin Height Under-bracing
Length		 Overall Height Headroom Height Bracket Width Pivot Point Bolt Size Reaction Arm Weight
(kg) R (m) F (mm) B (mm) C (mm) B2 (mm) H2 (mm) W2 (mm) A (mm) Ø R1 (kg) (kg)
80 3 102 500 320 680 305 380 75 M20 1335 82
80 4 102 500 320 680 305 380 75 M20 1932 101
80 5 102 600 400 780 330 380 75 M20 2390 147
80 6 133 600 400 780 330 380 105 M20 3291 189
125 3 102 500 320 680 305 380 75 M20 1672 82
125 4 133 500 400 680 330 380 105 M20 2683 139
125 5 133 600 500 780 330 380 105 M20 3083 174
125 6 102 750 500 930 385 380 105 M20 3170 200
250 3 102 600 400 780 330 380 75 M20 2266 101
250 4 133 600 400 780 380 380 105 M20 3207 129
250 5 102 750 500 930 390 380 105 M20 3617 190
250 6 102 850 550 1030 440 380 105 M20 4284 254
500 3 102 750 500 930 380 380 105 M20 3144 116
500 4 102 750 500 930 435 380 105 M20 4445 163
500 5 127 850 500 1050 485 380 105 M20 5238 220
500 6 140 1000 600 1200 835 380 105 M20 5855 306
1000 3 102 750 450 950 445 380 105 M20 5810 137
1000 4 127 850 500 1050 490 380 105 M20 7204 216
1000 5 140 1000 600 1200 540 380 105 M20 8085 302
1000 6 178 1000 600 1200 545 380 105 M20 10482 432

Mounting brackets are supplied undrilled. To be drilled / welded on site to suit the application.
