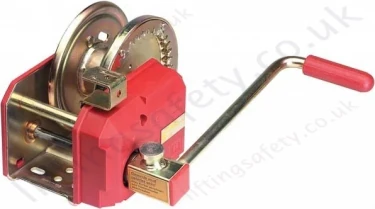

Hadef 220/97 Manual Wirerope Winch, Range 350kg to 900kg
Free Spooling Mechanism
Model:
220/97 / HMWW-4369
- Free spooling mechanism for 900 kg type available as option
- Zinc plated housing
- With load pressure brake

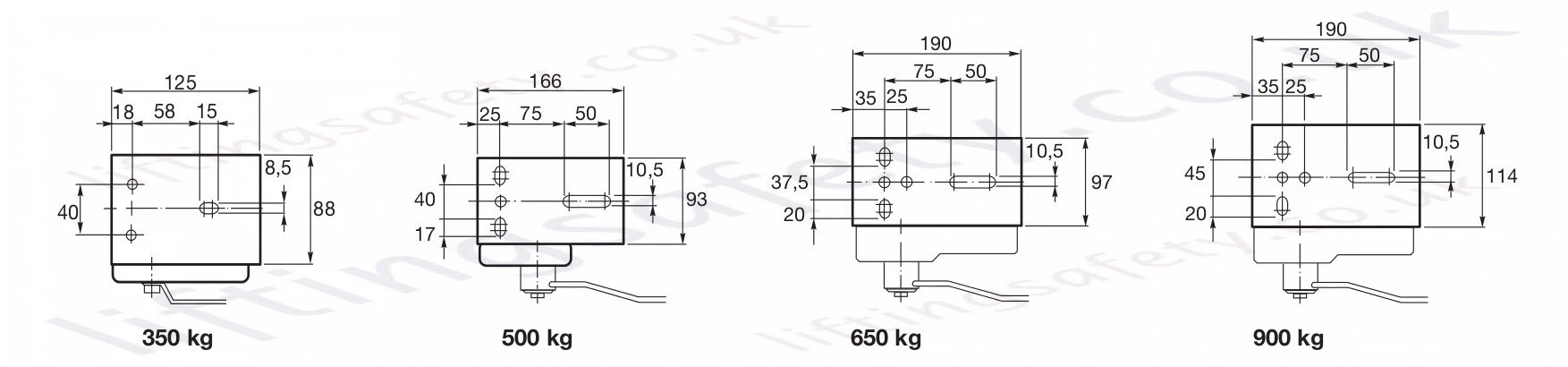

Dimensions & Specifications
Pulling Rope Force (1st Layer) | Wirerope | FEM 9.511/ISO 4301 | Wirerope Storage (m) | Wirerope Path per Crank Turn (mm) | Crank Effort (1st Layer) (daN/kg) | Drum Ø (mm) | Weight (without rope)(kg) | ||
Capacity (kg) | Pulling with 6% Inclination (kg) | Ø (mm) | Min. Breaking Load (kN) | ||||||
350 | 700 | 4 | 11 | 1 Em | 15 | 53 | 20 | 38 | 2 |
500 | 1000 | 5 | 15 | 1 Em | 17 | 44 | 20 | 48 | 4 |
650 | 1400 | 6 | 20 | 1 Em | 20 | 25 | 18 | 65 | 7 |
900 | 1800 | 7 | 28 | 1 Em | 16 | 25 | 19 | 65 | 7 |
900 A | 1800 | 7 | 28 | 1 Em | 16 | 25 | 19 | 65 | 8 |
Pricing
- Free spooling mechanism for 900 kg type available as option
- Zinc plated housing
- With load pressure brake
Dimensions & Specifications
Pulling Rope Force (1st Layer) | Wirerope | FEM 9.511/ISO 4301 | Wirerope Storage (m) | Wirerope Path per Crank Turn (mm) | Crank Effort (1st Layer) (daN/kg) | Drum Ø (mm) | Weight (without rope)(kg) | ||
Capacity (kg) | Pulling with 6% Inclination (kg) | Ø (mm) | Min. Breaking Load (kN) | ||||||
350 | 700 | 4 | 11 | 1 Em | 15 | 53 | 20 | 38 | 2 |
500 | 1000 | 5 | 15 | 1 Em | 17 | 44 | 20 | 48 | 4 |
650 | 1400 | 6 | 20 | 1 Em | 20 | 25 | 18 | 65 | 7 |
900 | 1800 | 7 | 28 | 1 Em | 16 | 25 | 19 | 65 | 7 |
900 A | 1800 | 7 | 28 | 1 Em | 16 | 25 | 19 | 65 | 8 |
