Straightpoint Wirelink Plus Load Cell / Dynamometer - Range 1000kg to 300 tonnes.

Straightpoint Wirelink Plus Load Cell / Dynamometer - Range 1000kg to 300 tonnes.

SP wired (non-indicating) tension load indicator. Optional handheld display.

Model:

Wirelink Plus / WLLC-4491

Straightpoint Wirelink Plus Load Cell / Dynamometer - Range 1000kg to 300 tonnes.

Wirelink Plus Hhp In Hand

The Wirelink Plus is the non-indicating version of our very popular Radiolink plus (RLP) and Loadlink plus (LLP) Digital Dynamometer Tension Load Cells. This non-indicating loadlink is designed for use with our Handheld plus (HHP) Digital Display, Desktop controller PC software (DCP10M) or other form of instrumentation.

Manufactured from Aerospace grade aluminium and utilising an advanced internal design structure this range of non-indicating Load cells are extremely light weight, easy to handle and are used worldwide in an array of industries for lifting, pulling, proof and structural load testing.

The extremely versatile platform can be used with digital displays including the Straightpoint handheld plus, PLCs, Data Acquisition systems (DAQ) etc… and configured with a vast array of output formats to include mV/V, RS-422, RS-485, utilizing the ASCII, MODBUS TRU and CAN-BUS protocols.

A standard analogue output option is available to include:
The Wirelink plus is supplied with a 10 metre cable as standard however usable cable length varies greatly with lengths available to 1500 metres depending on output format.

Features

  • Constructed from lightweight aerospace aluminium
  • Available in capacities ranging from 1 – 300 tonnes
  • High Accuracy
  • Multiple output options to include mV/V, analogue out, ASCII, MODBUS RTU and CAN-BUS
  • Available with optional IP68 environmental protection
  • Options for subsea use available

Supplied as standard with:

  • 10 Metres / 32 Feet Cable
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case
  • RFID Tagged
  • Note: Handset not included as standard

Dimensions & Specifications

Metric Dimensions = millimetres (mm)

Part Number WLP1T WLP2T5 WLP5T WLP12T WLP25T WLP35T WLP50T WLP75T WLP100T WLP150T WLP200T WLP250T WLP300T
Capacity 1000kg 2.5te 5te 12te 25te 35te 50te 75te 100te 150te 200te 250te 300te
Resolution 0.5kg 0.001te 0.001te 0.002te 0.005te 0.005te 0.01te 0.01te 0.05te 0.05te 0.1te 0.1te 0.1te
Weight 1.4kg 1.4kg 2kg 3.2kg 5kg 8.6kg 11.5kg 16kg 34kg 46kg 72kg 72kg 118kg
Safety Factor 12.1 5:1 5:1 5:1 5:1 5:1 5:1 5:1 5:1 4:1 5:1 4:1 5:1
Protection IP67
Operating Temp -10 to +50 °C
Accuracy +/- 0.3% of applied load
Dimension A 204 204 249 305 340 393 424 470 608 670 700 700 806
Dimension B 43 43 43 47 60 75 75 75 99 99 144 144 150
Dimension C 101 101 101 101 115 126 163 202 255 303 320 320 426
Dimension D 146 146 165 193 215 225 230 260 320 360 350 350 350
Dimension E 24.5 24.5 38 47.5 55 60 76 76 109 109 132 132 160
Dimension F 48 48 66
Dimension G 19 19 32
Crosby Shackle G2130 G2140
Loading Pin Ø 19 19 25 35 51 57 57 70 83 95 121 127 152
Options
Part Number ICA1 ICA2 ICA3 ICA4 ICA5
Description 3 wire 0-10v analogue output 3 wire 0-5v analogue output 4 wire +/- 10v analogue output 3 wire 4-20mA analogue output 2 wire 4-20mA analogue output

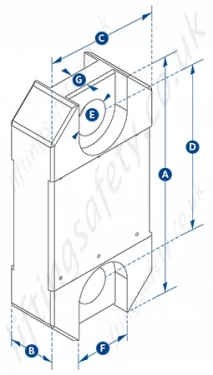

Straightpoint Load Cell Dimensions

Imperial Dimensions = inches

Part Number WLP1TU WLP2T5U WLP5TU WLP12TU WLP25TU WLP35TU WLP50TU WLP75TU WLP100TU WLP150TU WLP200TU WLP250TU WLP300TU
Capacity 2200lb 5500lb 11000lb 26000lb 55000lb 77000lb 110000lb 165000lb 220000lb 330000lb 440000lb 550000lb 660000lb
Resolution 1lb 2lb 2lb 5lb 10lb 10lb 20lb 20lb 100lb 100lb 200lb 200lb 200lb
Weight 3.1lb 3.1lb 4.4lb 7.1lb 11lb 19lb 25.3lb 35.3lb 75lb 101.4lb 158.7lb 158.7lb 260lb
Safety Factor 12.1 5:1 5:1 5:1 5:1 5:1 5:1 5:1 5:1 4:1 5:1 4:1 5:1
Protection NEMA 6
Operating Temp 14 to 122˚F
Accuracy +/- 0.3% of applied load
Dimension A 8.03 8.03 9.80 12.01 13.39 15.47 16.69 18.50 23.94 26.38 27.56 27.56 31.73
Dimension B 1.69 1.69 1.69 1.85 2.36 2.95 2.95 2.95 3.90 3.90 5.67 5.67 5.91
Dimension C 3.98 3.98 3.98 3.98 4.53 4.96 6.42 7.95 10.04 11.93 12.60 12.60 16.77
Dimension D 5.75 5.75 6.50 7.60 8.46 8.86 9.06 10.24 12.60 14.17 13.78 13.78 13.78
Dimension E 0.96 0.96 1.50 1.87 2.17 2.36 2.99 2.99 4.29 4.29 5.20 5.20 6.30
Dimension F 1.89 1.89 2.60
Dimension G 0.75 0.75 1.26
Crosby Shackle G2130 G2140
Loading Pin Ø 3/4" 3/4" 1" 1 3/8" 2" 2 1/4" 2 1/4" 2 3/4" 3 1/4" 3 3/4" 4 3/4" 5" 6"

Output options

Part Number Description
ICA1 3 wire 0-10v analogue output
ICA2 3 wire 0-5v analogue output
ICA3 4 wire +/- 10v analogue output
ICA4 3 wire 4-20mA analogue output
ICA5 2 wire 4-20mA analogue output
Hhp In Hand

Optional Handheld

Fully featured handheld display for all non-radio Straightpoint loadlink load cell (dynamometer) and crane scale products.

Our handheld plus can also be connected to any other manufacturers load cell products.

Handheld Features

  • Push Button Control
  • Tare, units (kg, lbs, kN and tonnes)
  • Peak hold
  • Preset Tare
  • Audible Setpoint Alarm
  • Overload Counter.


Pricing

Unit Price

£

Request Quote
Add to Quote Request
Description

+

The Wirelink Plus is the non-indicating version of our very popular Radiolink plus (RLP) and Loadlink plus (LLP) Digital Dynamometer Tension Load Cells. This non-indicating loadlink is designed for use with our Handheld plus (HHP) Digital Display, Desktop controller PC software (DCP10M) or other form of instrumentation.

Manufactured from Aerospace grade aluminium and utilising an advanced internal design structure this range of non-indicating Load cells are extremely light weight, easy to handle and are used worldwide in an array of industries for lifting, pulling, proof and structural load testing.

The extremely versatile platform can be used with digital displays including the Straightpoint handheld plus, PLCs, Data Acquisition systems (DAQ) etc… and configured with a vast array of output formats to include mV/V, RS-422, RS-485, utilizing the ASCII, MODBUS TRU and CAN-BUS protocols.

A standard analogue output option is available to include:
The Wirelink plus is supplied with a 10 metre cable as standard however usable cable length varies greatly with lengths available to 1500 metres depending on output format.

Features

  • Constructed from lightweight aerospace aluminium
  • Available in capacities ranging from 1 – 300 tonnes
  • High Accuracy
  • Multiple output options to include mV/V, analogue out, ASCII, MODBUS RTU and CAN-BUS
  • Available with optional IP68 environmental protection
  • Options for subsea use available

Supplied as standard with:

  • 10 Metres / 32 Feet Cable
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case
  • RFID Tagged
  • Note: Handset not included as standard

Dimensions & Specifications

Metric Dimensions = millimetres (mm)

Part Number WLP1T WLP2T5 WLP5T WLP12T WLP25T WLP35T WLP50T WLP75T WLP100T WLP150T WLP200T WLP250T WLP300T
Capacity 1000kg 2.5te 5te 12te 25te 35te 50te 75te 100te 150te 200te 250te 300te
Resolution 0.5kg 0.001te 0.001te 0.002te 0.005te 0.005te 0.01te 0.01te 0.05te 0.05te 0.1te 0.1te 0.1te
Weight 1.4kg 1.4kg 2kg 3.2kg 5kg 8.6kg 11.5kg 16kg 34kg 46kg 72kg 72kg 118kg
Safety Factor 12.1 5:1 5:1 5:1 5:1 5:1 5:1 5:1 5:1 4:1 5:1 4:1 5:1
Protection IP67
Operating Temp -10 to +50 °C
Accuracy +/- 0.3% of applied load
Dimension A 204 204 249 305 340 393 424 470 608 670 700 700 806
Dimension B 43 43 43 47 60 75 75 75 99 99 144 144 150
Dimension C 101 101 101 101 115 126 163 202 255 303 320 320 426
Dimension D 146 146 165 193 215 225 230 260 320 360 350 350 350
Dimension E 24.5 24.5 38 47.5 55 60 76 76 109 109 132 132 160
Dimension F 48 48 66
Dimension G 19 19 32
Crosby Shackle G2130 G2140
Loading Pin Ø 19 19 25 35 51 57 57 70 83 95 121 127 152
Options
Part Number ICA1 ICA2 ICA3 ICA4 ICA5
Description 3 wire 0-10v analogue output 3 wire 0-5v analogue output 4 wire +/- 10v analogue output 3 wire 4-20mA analogue output 2 wire 4-20mA analogue output
Straightpoint Load Cell Dimensions

Imperial Dimensions = inches

Part Number WLP1TU WLP2T5U WLP5TU WLP12TU WLP25TU WLP35TU WLP50TU WLP75TU WLP100TU WLP150TU WLP200TU WLP250TU WLP300TU
Capacity 2200lb 5500lb 11000lb 26000lb 55000lb 77000lb 110000lb 165000lb 220000lb 330000lb 440000lb 550000lb 660000lb
Resolution 1lb 2lb 2lb 5lb 10lb 10lb 20lb 20lb 100lb 100lb 200lb 200lb 200lb
Weight 3.1lb 3.1lb 4.4lb 7.1lb 11lb 19lb 25.3lb 35.3lb 75lb 101.4lb 158.7lb 158.7lb 260lb
Safety Factor 12.1 5:1 5:1 5:1 5:1 5:1 5:1 5:1 5:1 4:1 5:1 4:1 5:1
Protection NEMA 6
Operating Temp 14 to 122˚F
Accuracy +/- 0.3% of applied load
Dimension A 8.03 8.03 9.80 12.01 13.39 15.47 16.69 18.50 23.94 26.38 27.56 27.56 31.73
Dimension B 1.69 1.69 1.69 1.85 2.36 2.95 2.95 2.95 3.90 3.90 5.67 5.67 5.91
Dimension C 3.98 3.98 3.98 3.98 4.53 4.96 6.42 7.95 10.04 11.93 12.60 12.60 16.77
Dimension D 5.75 5.75 6.50 7.60 8.46 8.86 9.06 10.24 12.60 14.17 13.78 13.78 13.78
Dimension E 0.96 0.96 1.50 1.87 2.17 2.36 2.99 2.99 4.29 4.29 5.20 5.20 6.30
Dimension F 1.89 1.89 2.60
Dimension G 0.75 0.75 1.26
Crosby Shackle G2130 G2140
Loading Pin Ø 3/4" 3/4" 1" 1 3/8" 2" 2 1/4" 2 1/4" 2 3/4" 3 1/4" 3 3/4" 4 3/4" 5" 6"

Output options

Part Number Description
ICA1 3 wire 0-10v analogue output
ICA2 3 wire 0-5v analogue output
ICA3 4 wire +/- 10v analogue output
ICA4 3 wire 4-20mA analogue output
ICA5 2 wire 4-20mA analogue output
Hhp In Hand

Optional Handheld

Fully featured handheld display for all non-radio Straightpoint loadlink load cell (dynamometer) and crane scale products.

Our handheld plus can also be connected to any other manufacturers load cell products.

Handheld Features

  • Push Button Control
  • Tare, units (kg, lbs, kN and tonnes)
  • Peak hold
  • Preset Tare
  • Audible Setpoint Alarm
  • Overload Counter.
